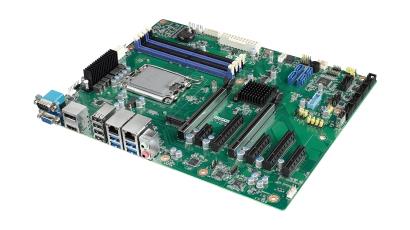

AIMB-788E

LGA1700 第12/13/14代 Intel® Core™ i9/i7/i5/i3 ATX主板，带 DP/HDMI/VGA, DDR5, USB 3.2, M.2

  • Intel®第12/13/14代Core™i9/i7/i5/i3和Pentium®/Celeron®处理器，采用Q670E/R680E芯片组
  • 双PCIe x16扩展插槽
  • 4个高达192 GB DDR5的DIMM插槽
  • 7个PCIe插槽或用于NVMe RAID的双M.2 M key
  • 三显DP/HDMI/VGA和双GbE局域网
  • M.2、SATA RAID 0、1、5、10、USB 3.2 Gen 1
  • DeviceOn搭配研华iBMC远程带外电源管理解决方案

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • LGA1700 第12/13/14代 Intel® Core™ i9/i7/i5/i3 ATX主板，带 DP/HDMI/VGA, DDR5, USB 3.2, M.2

规格

Processor System
CPU
  • Intel® Core™ Ultra processors (Series 2)
  • Intel® Core™ Ultra processors (Series 2)
Socket Q'ty
  • 1 x LGA1700
  • 1 x LGA1700
TDP
  • Up to 65 W
  • Up to 65 W
Core Number
  • Up to 24
  • Up to 24
L3 Cache
  • Up to 36 MB
  • Up to 36 MB
Base Frequency
  • Up to 3.9 GHz
  • Up to 3.9 GHz
Chipset
  • Intel® Q670E
  • Intel® Q670E
BIOS
  • AMI 256 Mbit SPI Flash
  • AMI 256 Mbit SPI Flash
Expansion
PCIe x16
  • 2
  • 2
PCIe x8
  • 2
  • 2
PCIe x4
  • 2
  • 1
PCI
  • -
  • -
Expansion Interface
PCI Express x 1
  • 1
  • 1
Memory
Type and Speed
  • Dual-Channel DDR5 4400 MHz (non-ECC)
  • Dual-Channel DDR5 4400 MHz (non-ECC)
System Max Capacity
  • 192 GB
  • 192 GB
Per Slot Max Capacity
  • 96 GB
  • 96 GB
Slots
  • 4 x 288-pin DIMM
  • 4 x 288-pin DIMM
LAN
Interface
  • 10/100/1000 Mbps
  • 10/100/1000 Mbps
Controller
  • LAN1: Intel I219LM, LAN2: Intel I210IT
  • LAN1: Intel I219LM, LAN2: Intel I210IT
Connector
  • 2 x RJ45
  • 2 x RJ45
Rear I/O Interface
VGA
  • 1
  • 1
HDMI
  • 1 (Resolution up to 3840 x 2160 @ 60Hz)
  • 1 (Resolution up to 3840 x 2160 @ 60Hz)
Display
  • 1
  • 1
Ethernet
  • 2
  • 2
USB
  • 8 (4 x USB 3.2 Gen 1, 4 x USB 2.0)
  • 8 (4 x USB 3.2 Gen 1, 4 x USB 2.0)
Audio
  • 2 (Mic-in, Line-out)
  • 2 (Mic-in, Line-out)
Serial
  • 1 (RS-232)
  • 1 (RS-232)
WatchDog Timer
Output
  • System Reset
  • System Reset
Interval
  • Programmable 1~255 sec
  • Programmable 1~255 sec
Environment
Operating Temperature
  • 0 ~ 60 °C (32 ~ 140 °F)
  • 0 ~ 60 °C (32 ~ 140 °F)
Non-Operational Temperature
  • -40 ~ 85° C (-40 ~ 185° F)
  • -40 ~ 85° C (-40 ~ 185° F)
Humidity
  • 95% @ 40° C (non-condensing)
  • 95% @ 40° C (non-condensing)
Operating Humidity
  • 95% @ 40 °C (Non-condensing)
  • 95% @ 40 °C (Non-condensing)
Physical Characteristics
Dimension (L x H)
  • 304.8 x 244 mm (12" x 9.6")
  • 304.8 x 244 mm (12" x 9.6")
