AI 行业专用板卡

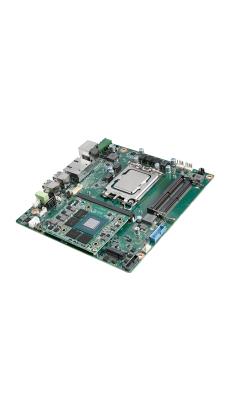

AIMB-288E

研华AIMB-288E是一款高性能、超薄Mini-ITX主板，适配Intel 第12/13/14代 Core i系列处理器。横向显卡插槽，搭配NVIDIA Quadro T1000/A500/A2000 MXM显卡或Intel Arc A370M MXM显卡。超薄散热设计，高性能选择方案。

  • 支持Intel 第12/13/14代 Core i处理器与H610E芯片组
  • 搭载NVIDIA Quadro 嵌入式级别T1000/A500/A2000 MXM显卡或Intel Arc A370M MXM显卡
  • 2 x SODIMM，最大支持64GB DDR5 4800MHz
  • 独立三显：2 x DP/eDP，最高可达4K
  • 支持4 x USB 3.2 Gen2，2 x USB 3.2 Gen1，1 x SATA，2 x 千兆网口，1 x M Key M.2 + 1 x B-Key
  • 支持SUSI API和DeviceOn

认证：

技术资源链接：

产品型录 技术文件下载
  • 研华AIMB-288E是一款高性能、超薄Mini-ITX主板，适配Intel 第12/13/14代 Core i系列处理器。横向显卡插槽，搭配NVIDIA Quadro T1000/A500/A2000 MXM显卡或Intel Arc A370M MXM显卡。超薄散热设计，高性能选择方案。

规格

Processor
CPU
  • Intel® 12/13/14th Gen Core™ I Processor
  • Intel® 12/13/14th Gen Core™ I Processor
  • Intel® 12/13/14th Gen Core™ I Processor
  • Intel® 12th generation Core™ I processor/ Pentium®/Celeron®
  • Intel® 12th generation Core™ I processor/ Pentium®/Celeron®
  • Intel® 12th generation Core™ I processor/ Pentium®/Celeron®
Core Number
  • Up to 24C
  • Up to 24C
  • Up to 24C
  • Up to 16C
  • Up to 16C
  • Up to 16C
Max Speed
  • Up to 5.8GHz
  • Up to 5.8GHz
  • Up to 5.8GHz
  • Up to 5.0GHz
  • Up to 5.0GHz
  • Up to 5.0GHz
L3 Cache
  • Up to 36MB
  • Up to 36MB
  • Up to 36MB
  • Up to 30MB
  • Up to 30MB
  • Up to 30MB
TDP
  • Up to 65W
  • Up to 65W
  • Up to 65W
  • Up to 65W
  • Up to 65W
  • Up to 65W
Chipset
  • H610E
  • H610E
  • H610E
  • H610E
  • H610E
  • H610E
BIOS
  • AMI EFI 256Mb SPI
  • AMI EFI 256Mb SPI
  • AMI EFI 256Mb SPI
  • AMI EFI 256Mb SPI
  • AMI EFI 256Mb SPI
  • AMI EFI 256 Mbit
Expansion
M.2
  • 1 x M-key for storage (Type: 2280; NVMe supported), 1 x B-key for storage (Type: 2242)
  • 1 x M-key for storage (Type: 2280; NVMe supported), 1 x B-key for storage (Type: 2242)
  • 1 x M-key for storage (Type: 2280; NVMe supported), 1 x B-key for storage (Type: 2242)
  • 1 x M-key for storage (Type: 2280; NVMe supported), 1 x B-key for storage (Type: 2242)
  • 1 x M-key for storage (Type: 2280; NVMe supported), 1 x B-key for storage (Type: 2242)
  • 1 x M-key for storage (Type: 2280; NVMe supported), 1 x B-key for storage (Type: 2242)
Memory
Technology
  • Dual Channel DDR5 5600 MT/s
  • Dual Channel DDR5 5600 MT/s
  • Dual Channel DDR5 5600 MT/s
  • DDR5 4800 MHz
  • DDR5 4800 MHz
  • DDR5 4800 MHz
Max. Capacity
  • 96 GB (up to 48GB per DIMM)
  • 96 GB (up to 48GB per DIMM)
  • 96 GB (up to 48GB per DIMM)
  • 32 GB
  • 32 GB
  • 32 GB
Socket
  • 2 x 262 pin DDR5 SO-DIMM
  • 2 x 262 pin DDR5 SO-DIMM
  • 2 x 262 pin DDR5 SO-DIMM
  • 2 x 262 pin DDR5 SO-DIMM
  • 2 x 262 pin DDR5 SO-DIMM
  • 2 x 262 pin DDR5 SO-DIMM
Display
Multiple Display
  • Triple
  • Triple
  • Triple
  • Triple
  • Triple
  • Triple
Graphics
GPU
  • Quadro® A500
  • Quadro® A2000
  • Intel Arc A370M
  • Quadro® A2000
  • Intel Arc A370M
  • Quadro® T1000
Ethernet
Controller
  • 1 x Intel i219LM/ 1 x i226V
  • 1 x Intel i219LM/ 1 x i226V
  • 1 x Intel i219LM/ 1 x i226V
  • 1 x Intel i219LM/ 1 x i226V
  • 1 x Intel i219LM/ 1 x i226V
  • 1 x Intel i219LM/ 1 x i226V
Connector
  • 2 x RJ-45
  • 2 x RJ-45
  • 2 x RJ-45
  • 2 x RJ-45
  • 2 x RJ-45
  • 2 x RJ-45
Audio
CODEC
  • Realtek ALC888S, High Definition Audio (HD)
  • Realtek ALC888S, High Definition Audio (HD)
  • Realtek ALC888S, High Definition Audio (HD)
  • Realtek ALC888S, High Definition Audio (HD)
  • Realtek ALC888S, High Definition Audio (HD)
  • Realtek ALC888S, High Definition Audio (HD)
Amplifier
  • Yes (Option, 3.2W)
  • Yes (Option, 3.2W)
  • Yes (Option, 3.2W)
  • Yes (Option, 3.2W)
  • Yes (Option, 3.2W)
  • Yes (Option, 3.2W)
SATA
Max. Transfer Rate
  • 6.0 Gb/s
  • 6.0 Gb/s
  • 6.0 Gb/s
  • 6.0 Gb/s
  • 6.0 Gb/s
  • 6.0 Gb/s
Channel
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
Rear I/O
DP
  • 2
  • 2
  • 2
  • 2
  • 2
  • 2
Ethernet
  • 2
  • 2
  • 2
  • 2
  • 2
  • 2
USB
  • 4, USB 3.2 Gen1x1
  • 4, USB 3.2 Gen1x1
  • 4, USB 3.2 Gen1x1
  • 4, USB 3.2 Gen1x1
  • 4, USB 3.2 Gen1x1
  • 4, USB 3.2 Gen1x1
Audio
  • 1, Line-out
  • 1, Line-out
  • 1, Line-out
  • 1, Line-out
  • 1, Line-out
  • 1, Line-out
Power Connector
  • 1 x Terminal block
  • 1 x Terminal block
  • 1 x Terminal block
  • 1 x Terminal block
  • 1 x Terminal block
  • 1 x Terminal block
Internal Connectors
USB
  • 2, USB 3.2 Gen1x1
  • 2, USB 3.2 Gen1x1
  • 2, USB 3.2 Gen1x1
  • 2, USB 3.2 Gen1x1
  • 2, USB 3.2 Gen1x1
  • 2, USB 3.2 Gen1x1
LVDS/eDP
  • Only eDP
  • Only eDP
  • Only eDP
  • Only eDP
  • Only eDP
  • Only eDP
Serial
  • 2
  • 2
  • 2
  • 2
  • 2
  • 2
SATA
  • 1
  • 1
  • 1
  • 1
  • 1
  • 1
Watchdog Timer
Output
  • System reset
  • System reset
  • System reset
  • System reset
  • System reset
  • System reset
Interval
  • Programmable 1 ~ 255 (second or minute)
  • Programmable 1 ~ 255 (second or minute)
  • Programmable 1 ~ 255 (second or minute)
  • Programmable 1 ~ 255 (second or minute)
  • Programmable 1 ~ 255 (second or minute)
  • Programmable 1 ~ 255 (second or minute)
Power Requirement
Input Voltage
  • 19-24V DC-in
  • 19-24V DC-in
  • 19-24V DC-in
  • 19-24V DC-in
  • 19-24V DC-in
  • 19-24V DC-in
Connector Type
  • 4P Terminal Block
  • 4P Terminal Block
  • 4P Terminal Block
  • 4P Terminal Block
  • 4P Terminal Block
  • 4P Terminal Block
Environment
Operational Temperature
  • 0 ~ 60° C (32 ~ 140° F)
  • 0 ~ 60° C (32 ~ 140° F)
  • 0 ~ 60° C (32 ~ 140° F)
  • 0 ~ 60° C (32 ~ 140° F)
  • 0 ~ 60° C (32 ~ 140° F)
  • 0 ~ 60° C (32 ~ 140° F)
Non-Operational
  • -40° C ~ 85° C and 60° C @ 95% RH Non-Condensing
  • -40° C ~ 85° C and 60° C @ 95% RH Non-Condensing
  • -40° C ~ 85° C and 60° C @ 95% RH Non-Condensing
  • -40° C ~ 85° C and 60° C @ 95% RH Non-Condensing
  • -40° C ~ 85° C and 60° C @ 95% RH Non-Condensing
  • -40° C ~ 85° C and 60° C @ 95% RH Non-Condensing
Physical
Dimension (mm)
  • 170 x 190 mm (without heat sink)
  • 170 x 190 mm (without heat sink)
  • 170 x 190 mm (without heat sink)
  • 170 x 190 mm (without heat sink)
  • 170 x 190 mm (without heat sink)
  • 170 x 190 mm (without heat sink)
Operating System
Microsoft Windows
  • Windows 10 Enterprise 64 bit
  • Windows 10 Enterprise 64 bit
  • Windows 10 Enterprise 64 bit
  • Windows 10 Enterprise 64 bit
  • Windows 10 Enterprise 64 bit
  • Windows 10
