短版服务器

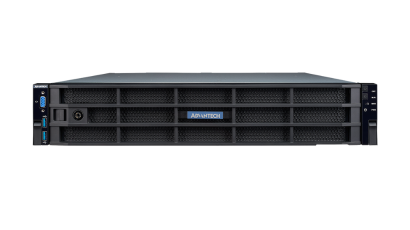

SKY-821E3

2U高性能边缘服务器，双核AMD EPYC 9004处理器

  • 经过NFVi Gen2认证的英特尔Select解决方案
  • 现场可更换
  • 高达 4张 FHFL, 2 FHHL 和2张 半高卡PCIe Gen5
  • 支持2 2.5" NVMe 和 2 M.2 2280 NVMe SSD
  • 支持1 OCP 3.0 PCIe Gen5 x16 NIC
  • 支持可选前挡板

认证：

技术资源链接：

产品型录 技术文件下载
  • 2U高性能边缘服务器，双核AMD EPYC 9004处理器

规格

Processor System
CPU
  • AMD EPYC™ 9005/9004 processors
TDP
  • Up to 400 W
Core Number
  • Up to 160 cores
Memory
Type and Speed
  • DDR5 6000 MHz RDIMM/3DS RDIMM
Channel
  • 24
Per Slot Max Capacity
  • 128 GB
System Max Capacity
  • 3 TB
Environment
Operating-Temperature
  • 0 ~ 40 °C (32 ~ 104 °F)
Operating Temperature
  • 0 ~ 35 °C (32 ~ 95 °F)
Non-Operating Temperature
  • -40 ~ 70 °C (-40 ~ 156 °F)
Operating Humidity
  • 95% @ 35 °C
Non-Operating Humidity
  • 95% @ 60° C
Operating Vibration
  • 0.3 Grms
Non-Operating Vibration
  • 1.88 Grms
Operating Shock
  • 10 G (with 11 ms duration, half sine wave)
Cooling
Cooling
  • 4 x system FAN with smart FAN
System Fan
  • 4 x 8038
Expansion
PCIe/PCI Module
  • 2 x FHFL/10.5" PCIe 5.0 x16, 2 x FHFL/10.5" PCIe 5.0 x8, 2 x FHHL PCIe 5.0 x8, 2 x Low Profile PCIe 5.0 x8
OCP
  • 1 x PCIe 5.0 OCP 3.0
Internal Storage
2.5" HDD/SSD
  • 2 x NVMe
M.2
  • 2 x NVMe 2280
Front Panel & I/O
USB
  • 1 x USB 3.1 / 1 x USB 2.0
Display
  • 1 x VGA
LED & Switch
  • 1 x Power status (w/button) , 1 x System UID (w/button), 1 x Reset button, 1 x System status LED
Rear I/O
Display
  • 1 x VGA
Console Port
  • 1 x RJ45 Console
USB
  • 2 x USB 3.2 Gen1
LAN
Controller
  • Intel® I210, Intel® X710
1GbE
  • 2
10GbE
  • 2
Interface
  • RJ-45
Power Supplies
Type
  • CRPS
Watts
  • 1200 W / 2000 W red. AC PSU
Security
TPM
  • TPM 2.0 optional
System Management
Controller
  • Aspeed AST2600
IPMI
  • IPMI2.0 compliant Advantech iManager
iKVM
  • Support (Advantech IPMI Core)
Shard NIC
  • Yes
Physical Characteristics
Form Factor
  • 2U
Weight
  • 22 kg
Dimensions (W x H x D)
  • 438 x 88 x 597 mm (17.2" x 3.5" x 23.5")
Installation (Mounting)
  • Rackmount
Certification
Safety
  • CE/FCC/CB/UL
