短版服务器

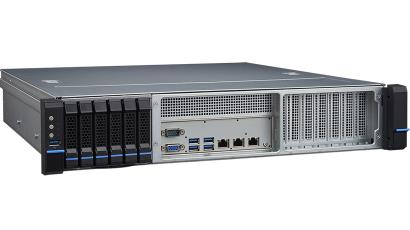

SKY-7632D

2U边缘服务器，第三代Intel®Xeon®可扩展处理器

  • 通过分散核心布局平衡CPU和GPU性能
  • 宽温支持，最高可达45C
  • 高达 5 x low profile 或2 x DW FH/FL PCIe gen4 插槽
  • 6 x 2.5" HDD 和 2 x M.2 NVME
  • 高达 16 x DDR4 3200 RDIMM / LRDIMM
  • 由Redfish管理的研华平台和安全的web界面

认证：

技术资源链接：

产品型录 技术文件下载
  • 2U边缘服务器，第三代Intel®Xeon®可扩展处理器

规格

Processor System
CPU
  • 3rd Gen Intel® Xeon Scalable processors
  • 3rd Gen Intel® Xeon Scalable processors
TDP
  • Up to 205 W
  • Up to 205 W
Core Number
  • Up to 32 cores
  • Up to 32 cores
L3 Cache
  • 1.5 MB
  • 1.5 MB
Chipset
  • Intel® C621A
  • Intel® C621A
Memory
Type and Speed
  • DDR4 3200 MHz ECC-REG RDIMM/LRDIMM, support Barlow Pass
  • DDR4 3200 MHz ECC-REG RDIMM/LRDIMM, support Barlow Pass
Per Slot Max Capacity
  • 128 GB
  • 128 GB
System Max Capacity
  • Maximum 4 TB ECC LRDIMM, Maximum 2 TB ECC RDIMM
  • Maximum 4 TB ECC LRDIMM, Maximum 2 TB ECC RDIMM
Expansion
PCIe/PCI Module
  • 3 x Low profile PCIe 4.0 x16, 2 x Low profile PCIe 4.0 x8
  • 3 x Low profile PCIe 4.0 x16, 2 x Low profile PCIe 4.0 x8
Front Storage
2.5" HDD/SSD
  • 6 x SAS/SATA
  • 6 x SAS/SATA
Internal Storage
M.2
  • 2 x NVMe
  • 2 x NVMe
Front Panel & I/O
Display
  • 1 x VGA
  • 1 x VGA
Console Port
  • 1 x Serial port, 1 x RJ45 IPMU port
  • 1 x Serial port, 1 x RJ45 IPMU port
LED & Switch
  • 1 x Power button, 1 x HDD activity LED, 1 x System alarm LED, 1 x LAN1, LAN2 activity LED
  • 1 x Power button, 1 x HDD activity LED, 1 x System alarm LED, 1 x LAN1, LAN2 activity LED
LAN
1GbE
  • 2
  • 2
Power Supplies
Type
  • CRPS
  • CRPS
Watts
  • 800 W
  • 800 W
Security
TPM
  • Optional
  • Optional
Cooling
System Fan
  • 4 x 8038
  • 4 x 8038
System Management
Controller
  • Aspeed AST2500
  • Aspeed AST2500
IPMI
  • IPMI2.0 compliant Advantech iManager
  • IPMI2.0 compliant Advantech iManager
iKVM
  • Support (Advantech IPMI Core)
  • Support (Advantech IPMI Core)
Shard NIC
  • Yes
  • Yes
Environment
Operating Temperature
  • 0 ~ 45 °C (32 ~ 113 °F)
  • 0 ~ 45 °C (32 ~ 113 °F)
Non-Operating Temperature
  • -40 ~ 60 °C (-40 ~ 140 °F)
  • -40 ~ 60 °C (-40 ~ 140 °F)
Operating Humidity
  • -
  • -
Operating Vibration
  • 0.3 Grms
  • 0.3 Grms
Non-Operating Vibration
  • 1.88 Grms
  • 1.88 Grms
Operating Shock
  • 31 G (with 2ms duration, half sine wave)
  • 31 G (with 2ms duration, half sine wave)
Non-Operating Shock
  • 71G (with 2ms duration, half since wave)
  • 71G (with 2ms duration, half since wave)
Physical Characteristics
Form Factor
  • 2U
  • 2U
Dimensions (W x H x D)
  • 438 x 87 x 450 mm (17.24" x 3.43" x 17.72")
  • 438 x 87 x 450 mm (17.24" x 3.43" x 17.72")
Weight
  • 25 kg
  • 25 kg
Installation (Mounting)
  • Rackmount
  • Rackmount
Certification
EMC
  • CE/FCC
  • CE/FCC
Safety
  • CB/UL
  • CB/UL

特点和优势

HPC-7420+ASMB-976

• 4U 18”机架式服务器

• 支持EE-ATX/EATX/ATX主板

• 11个扩展槽，最高支持3张GPU

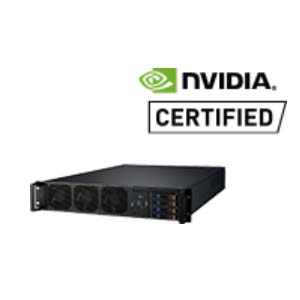

HPC-6240+ASMB-622
