无风扇工业平板电脑(PPC-3000S/PPC-300)

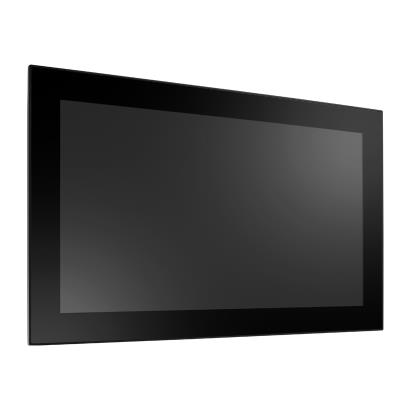

PPC-315W TGL

15.6" 无风扇工业平板电脑 Intel® Core™ i7/i5/i3处理器

  • 工业级15.6" FHD LCD屏，50K背光寿命
  • 全平面电容式触摸屏
  • 高性能、无风扇的第11代Intel® Core™ 处理器
  • 双通道内存插槽，最大支持64G
  • 紧凑型无风扇设计，铝合金外壳，前面板IP66防护等级
  • 支持双显示 (1 x 外接HDMI)
  • 1 x M.2 插槽 (2242/2280 NVME 或 SATA 接口) 供存储，支持SATA RAID 0, 1
  • 双2.5GBASE-T以太网接口, 支持时间敏感网络(TSN)技术
  • 支持TPM2.0硬件安全

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 15.6" 无风扇工业平板电脑 Intel® Core™ i7/i5/i3处理器

规格

Environment
Ingress Protection
  • Front Panel IP66
  • Front Panel IP66
  • Front Panel IP66
Operating Temperature
  • -10~50 °C (14~122 °F)
  • -10~50 °C (14~122 °F)
  • -10~50 °C (14~122 °F)
Relative Humidity
  • 95% RH (non-condensing)
  • 95% RH (non-condensing)
  • 95% RH (non-condensing)
Storage Temperature
  • -20~60 °C (-4~140 °F)
  • -20~60 °C (-4~140 °F)
  • -20~60 °C (-4~140 °F)
Vibration Protection
  • 2 Grms, random
  • 2 Grms, random
  • 2 Grms, random
Hardware
Certification
  • CE, FCC Class B, BSMI, CB, UL, CCC, UKCA
  • CE, FCC Class B, BSMI, CB, UL, CCC, UKCA
  • CE, FCC Class B, BSMI, CB, UL, CCC, UKCA
CPU
  • Intel® Core™ i5-1145G7E 1.5GHz Quad core
  • Intel® Core™ i3-1115G4E 2.2GHz Dual core
  • Intel® Core™ i7-1185G7E 1.8GHz Quad core
Ethernet
  • Intel® i226-LM GbE, Intel® i219-LM GbE
  • Intel® i226-LM GbE, Intel® i219-LM GbE
  • Intel® i226-LM GbE, Intel® i219-LM GbE
Expansion
  • 1 x M.2 E Key 2230
  • 1 x M.2 E Key 2230
  • 1 x M.2 E Key 2230
I/O
  • 1 x RS-232, 1 x RS-232/422/485, 3 x USB 3.2, 1 x USB 2.0, 1 x Type C, 1 x HDMI, 1 x Line Out
  • 1 x RS-232, 1 x RS-232/422/485, 3 x USB 3.2, 1 x USB 2.0, 1 x Type C, 1 x HDMI, 1 x Line Out
  • 1 x RS-232, 1 x RS-232/422/485, 3 x USB 3.2, 1 x USB 2.0, 1 x Type C, 1 x HDMI, 1 x Line Out
LAN
  • 1 x 10/100/1000 Mbps, 1 x 10/100/1000/2500 Mbps
  • 1 x 10/100/1000 Mbps, 1 x 10/100/1000/2500 Mbps
  • 1 x 10/100/1000 Mbps, 1 x 10/100/1000/2500 Mbps
Memory
  • 2 x DDR4 SO-DIMM Slot
  • 2 x DDR4 SO-DIMM Slot
  • 2 x DDR4 SO-DIMM Slot
OS Support
  • Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
  • Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
  • Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
Power Consumption
  • 70 W @ 19 VDC
  • 70 W @ 19 VDC
  • 70 W @ 19 VDC
Power Input
  • 12~30 VDC
  • 12~30 VDC
  • 12~30 VDC
Hardware Security
  • TPM 2.0
  • TPM 2.0
  • TPM 2.0
I/O Interface
Displays
  • 1 x HDMI
  • 1 x HDMI
  • 1 x HDMI
Power Connector
  • 1 x 2-Pin Terminal Block
  • 1 x 2-Pin Terminal Block
  • 1 x 2-Pin Terminal Block
Serial Ports
  • 1 x RS-232, 1 x RS-232/422/485
  • 1 x RS-232, 1 x RS-232/422/485
  • 1 x RS-232, 1 x RS-232/422/485
LCD Display
Backlight Life (hrs)
  • 50,000
  • 50,000
  • 50,000
Display Size
  • 15.6"
  • 15.6"
  • 15.6"
Luminance (cd/m2)
  • 450
  • 450
  • 450
Max. Resolution
  • 1920 x 1080
  • 1920 x 1080
  • 1920 x 1080
Viewing Angle (H/V°)
  • 178/178
  • 178/178
  • 178/178
Mechanical
Dimension (W x H x D)
  • 420 x 269 x 62 mm
  • 420 x 269 x 62 mm
  • 420 x 269 x 62 mm
Enclosure
  • Die-cast aluminum alloy
  • Die-cast aluminum alloy
  • Die-cast aluminum alloy
Mounting
  • Stand, Wall, VESA, Panel
  • Stand, Wall, VESA, Panel
  • Stand, Wall, VESA, Panel
Weight (Net)
  • 4.8 kg ( 10.67 lb)
  • 4.8 kg ( 10.67 lb)
  • 4.8 kg ( 10.67 lb)
Touchscreen
Touch Type
  • PCAP
  • PCAP
  • PCAP
USB Vision
Connector
  • 3 x USB 3.2 Type A, 1 x USB 2.0 Type A, 1 x Type C
  • 3 x USB 3.2 Type A, 1 x USB 2.0 Type A, 1 x Type C
  • 3 x USB 3.2 Type A, 1 x USB 2.0 Type A, 1 x Type C
