无风扇工业平板电脑(PPC-3000S/PPC-300)

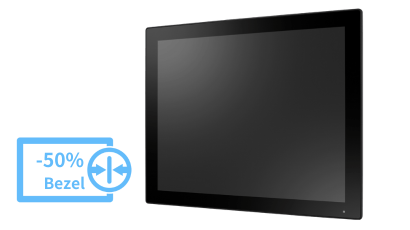

PPC-319S RPL

【预告】 19" 无风扇工业平板电脑，搭载Intel® Core™ 13代处理器 (i7/i5/i3)

  • 采用工业级LCD面板的全平面触摸屏
  • 高性能、无风扇的第13代英特尔®酷睿™处理器
  • 纤薄紧凑、无风扇设计，搭配铝合金外壳
  • 前面板IP66防护等级
  • 支持双显（1个外部DP接口）、iDoor以及PCI或PCIe
  • 1个M.2 M Key插槽，支持2242/2280规格（SATA或NVMe PCIe x4）用于存储，支持SATA RAID 0、1
  • 2个2500BASE-T以太网端口，支持时间敏感网络（TSN）技术
  • 支持VESA 100
  • 支持TPM 2.0硬件安全

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 【预告】 19" 无风扇工业平板电脑，搭载Intel® Core™ 13代处理器 (i7/i5/i3)

规格

Hardware
CPU
  • Intel® Core™ i5-1335UE 1.3GHz 10-Core
  • Intel® Core™ i3-1315UE 1.2GHz 6-Core
  • Intel® Core™ i5-1335UE 1.3GHz 10-Core
  • Intel® Core™ i7-1365UE 1.7GHz 10-Core
Memory
  • 1 x DDR5 SO-DIMM Slot
  • 1 x DDR5 SO-DIMM Slot
  • 1 x DDR5 SO-DIMM Slot
  • 1 x DDR5 SO-DIMM Slot
Storage
  • 1 x NVMe/SATA M.2 SSD slot (2280 M-Key), 1 x 2.5" SSD/HDD Bay
  • 1 x NVMe/SATA M.2 SSD slot (2280 M-Key), 1 x 2.5" SSD/HDD Bay
  • 1 x NVMe/SATA M.2 SSD slot (2280 M-Key), 1 x 2.5" SSD/HDD Bay
  • 1 x NVMe/SATA M.2 SSD slot (2280 M-Key), 1 x 2.5" SSD/HDD Bay
LAN
  • 2 x 10/100/1000/2500 Mbps
  • 2 x 10/100/1000/2500 Mbps
  • 2 x 10/100/1000/2500 Mbps
  • 2 x 10/100/1000/2500 Mbps
I/O
  • 2 x RS-232/422/485, 3 x USB 3.2, 1 x USB 2.0, 1 x DP, 1 x Line Out, 1 x iDoor Slot
  • 2 x RS-232/422/485, 3 x USB 3.2, 1 x USB 2.0, 1 x DP, 1 x Line Out, 1 x iDoor Slot
  • 2 x RS-232/422/485, 3 x USB 3.2, 1 x USB 2.0, 1 x DP, 1 x Line Out, 1 x iDoor Slot
  • 2 x RS-232/422/485, 3 x USB 3.2, 1 x USB 2.0, 1 x DP, 1 x Line Out, 1 x iDoor Slot
Expansion
  • 1 x M.2 E Key 2230, 1 x M.2 B key 2242/3042/3052, 1 x PCI or PCIe x 1
  • 1 x M.2 E Key 2230, 1 x M.2 B key 2242/3042/3052, 1 x PCI or PCIe x 1
  • 1 x M.2 E Key 2230, 1 x M.2 B key 2242/3042/3052, 1 x PCI or PCIe x 1
  • 1 x M.2 E Key 2230, 1 x M.2 B key 2242/3042/3052, 1 x PCI or PCIe x 1
Watchdog Timer
  • 1~255 s
  • 1~255 s
  • 1~255 s
  • 1~255 s
OS Support
  • Microsoft® Windows 10, Microsoft® Windows 11, Linux
  • Microsoft® Windows 10, Microsoft® Windows 11, Linux
  • Microsoft® Windows 10, Microsoft® Windows 11, Linux
  • Microsoft® Windows 10, Microsoft® Windows 11, Linux
Power Input
  • 24 VDC ±30%
  • 24 VDC ±30%
  • 24 VDC ±30%
  • 24 VDC ±30%
Power Consumption
  • 70 W @ 24 VDC
  • 70 W @ 24 VDC
  • 70 W @ 24 VDC
  • 70 W @ 24 VDC
Certification
  • CE, FCC Class B, BSMI, CB, UL, CCC, UKCA
  • CE, FCC Class B, BSMI, CB, UL, CCC, UKCA
  • CE, FCC Class B, BSMI, CB, UL, CCC, UKCA
  • CE, FCC Class B, BSMI, CB, UL, CCC, UKCA
Mechanical
Dimension (W x H x D)
  • 429.7 x 354.6 x 56.4 mm
  • 429.7 x 354.6 x 56.4 mm
  • 429.7 x 354.6 x 56.4 mm
  • 429.7 x 354.6 x 56.4 mm
Weight (Net)
  • 6.3 kg (13.89 lb)
  • 6.3 kg (13.89 lb)
  • 6.3 kg (13.89 lb)
  • 6.3 kg (13.89 lb)
LCD Display
Display Size
  • 19"
  • 19"
  • 19"
  • 19"
Max. Resolution
  • 1280 x 1024
  • 1280 x 1024
  • 1280 x 1024
  • 1280 x 1024
Viewing Angle (H/V°)
  • 178/178
  • 178/178
  • 178/178
  • 178/178
Luminance (cd/m2)
  • 450
  • 450
  • 450
  • 450
Backlight Life (hrs)
  • 50,000
  • 50,000
  • 50,000
  • 50,000
Touchscreen
Touch Type
  • PCAP
  • 5-wire resistive
  • 5-wire resistive
  • 5-wire resistive
Environment
Operating Temperature
  • -10~50 °C (14~122 °F)
  • -10~50 °C (14~122 °F)
  • -10~50 °C (14~122 °F)
  • -10~50 °C (14~122 °F)
Storage Temperature
  • -20~60 °C (-4~140 °F)
  • -20~60 °C (-4~140 °F)
  • -20~60 °C (-4~140 °F)
  • -20~60 °C (-4~140 °F)
Relative Humidity
  • 95% RH (non-condensing)
  • 95% RH (non-condensing)
  • 95% RH (non-condensing)
  • 95% RH (non-condensing)
Ingress Protection
  • Front Panel IP66
  • Front Panel IP66
  • Front Panel IP66
  • Front Panel IP66
