医用平板电脑

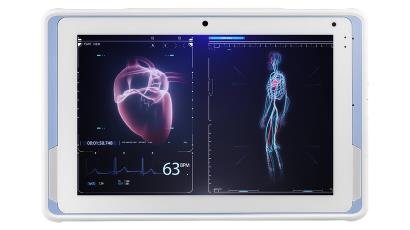

AIM-68H

10.1英寸医疗级手持平板电脑

  • Intel® N200 处理器，支持 Windows10/11 Enterprise，性能高效
  • 10.1英寸WUXGA显示屏，10点触控电容屏，带防指纹、防眩光康宁®大猩猩®玻璃
  • EN/UL 60601认证，确保患者和医务人员的安全，防止过热和电子干扰
  • 内置条码扫描器/NFC读取器提供准确的患者数据采集
  • LPDDR5 RAM/m.2 NVMe SSD 支持快速访问关键患者数据
  • IP65级防水防尘保护
  • 抗震/抗振，通过1.2米落摔测试
  • 内置Wi-Fi 6E，蓝牙5.3，提供高速连接

认证：

技术资源链接：

产品型录 技术文件下载
  • 10.1英寸医疗级手持平板电脑

规格

Barcode
Built In Barcode
  • X
  • V
  • X
  • V
  • X
  • X
  • V
System
Processor
  • Intel® N200 Processor quad-core (6M Cache, up to 3.70 GHz)
  • Intel® N200 Processor quad-core (6M Cache, up to 3.70 GHz)
  • Intel® N200 Processor quad-core (6M Cache, up to 3.70 GHz)
  • Intel® N200 Processor quad-core (6M Cache, up to 3.70 GHz)
  • Intel® N200 Processor quad-core (6M Cache, up to 3.70 GHz)
  • Intel® N200 Processor quad-core (6M Cache, up to 3.70 GHz)
  • Intel® N200 Processor quad-core (6M Cache, up to 3.70 GHz)
Memory
  • 8GB DDR5
  • 8GB DDR5
  • 8GB DDR5
  • 8GB DDR5
  • 8GB DDR5
  • 16GB DDR5
  • 16GB DDR5
OS
  • Windows 10/11 IoT Enterprise (Linux OS Optional)
  • Windows 10/11 IoT Enterprise (Linux OS Optional)
  • Windows 10/11 IoT Enterprise (Linux OS Optional)
  • Windows 10/11 IoT Enterprise (Linux OS Optional)
  • N/A
  • Windows 10/11 IoT Enterprise (Linux OS Optional)
  • Windows 10/11 IoT Enterprise (Linux OS Optional)
Storage
SSD
  • m.2 NVMe SSD 128 GB (256GB Optional)
  • m.2 NVMe SSD 128 GB (256GB Optional)
  • m.2 NVMe SSD 128 GB (256GB Optional)
  • m.2 NVMe SSD 128 GB (256GB Optional)
  • m.2 NVMe SSD 128 GB (256GB Optional)
  • m.2 NVMe SSD 128 GB (256GB Optional)
  • m.2 NVMe SSD 128 GB (256GB Optional)
Display
Type
  • 10.1" IPS LCD
  • 10.1" IPS LCD
  • 10.1" IPS LCD
  • 10.1" IPS LCD
  • 10.1" IPS LCD
  • 10.1" IPS LCD
  • 10.1" IPS LCD
Resolution
  • WUXGA 1920 x 1200
  • WUXGA 1920 x 1200
  • WUXGA 1920 x 1200
  • WUXGA 1920 x 1200
  • WUXGA 1920 x 1200
  • WUXGA 1920 x 1200
  • WUXGA 1920 x 1200
Brightness (cd/m2)
  • 800
  • 800
  • 800
  • 800
  • 800
  • 800
  • 800
Touch Type
  • 10-point multi-touch P-CAP touch control
  • 10-point multi-touch P-CAP touch control
  • 10-point multi-touch P-CAP touch control
  • 10-point multi-touch P-CAP touch control
  • 10-point multi-touch P-CAP touch control
  • 10-point multi-touch P-CAP touch control
  • 10-point multi-touch P-CAP touch control
Glass Type
  • Corning® Gorilla® Glass 3 (Anti-Fingerprint, Anti-Glare)
  • Corning® Gorilla® Glass 3 (Anti-Fingerprint, Anti-Glare)
  • Corning® Gorilla® Glass 3 (Anti-Fingerprint, Anti-Glare)
  • Corning® Gorilla® Glass 3 (Anti-Fingerprint, Anti-Glare)
  • Corning® Gorilla® Glass 3 (Anti-Fingerprint, Anti-Glare)
  • Corning® Gorilla® Glass 3 (Anti-Fingerprint, Anti-Glare)
  • Corning® Gorilla® Glass 3 (Anti-Fingerprint, Anti-Glare)
Touch Mode
  • Normal, Glove
  • Normal, Glove
  • Normal, Glove
  • Normal, Glove
  • Normal, Glove
  • Normal, Glove
  • Normal, Glove
Communications
WLAN
  • IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6E)
  • IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6E)
  • IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6E)
  • IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6E)
  • IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6E)
  • IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6E)
  • IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6E)
Bluetooth
  • Bluetooth® v5.3
  • Bluetooth® v5.3
  • Bluetooth® v5.3
  • Bluetooth® v5.3
  • Bluetooth® v5.3
  • Bluetooth® v5.3
  • Bluetooth® v5.3
NFC
  • 13.56 MHz, compatible with ISO15693, ISO14443A, ISO 14443B, FeliCa
  • 13.56 MHz, compatible with ISO15693, ISO14443A, ISO 14443B, FeliCa
  • 13.56 MHz, compatible with ISO15693, ISO14443A, ISO 14443B, FeliCa
  • 13.56 MHz, compatible with ISO15693, ISO14443A, ISO 14443B, FeliCa
  • 13.56 MHz, compatible with ISO15693, ISO14443A, ISO 14443B, FeliCa
  • 13.56 MHz, compatible with ISO15693, ISO14443A, ISO 14443B, FeliCa
  • 13.56 MHz, compatible with ISO15693, ISO14443A, ISO 14443B, FeliCa
I/O
STANDARD I/O PORT
  • 1x USB3.1 Type-C for Charging & DP, 1x USB 3.1 Type-A
  • 1x USB3.1 Type-C for Charging & DP, 1x USB 3.1 Type-A
  • 1x USB3.1 Type-C for Charging & DP, 1x USB 3.1 Type-A
  • 1x USB3.1 Type-C for Charging & DP, 1x USB 3.1 Type-A
  • 1x USB3.1 Type-C for Charging & DP, 1x USB 3.1 Type-A
  • 1x USB3.1 Type-C for Charging & DP, 1x USB 3.1 Type-A
  • 1x USB3.1 Type-C for Charging & DP, 1x USB 3.1 Type-A
EXTENDED I/O PORT
  • 1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power
  • 1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power
  • 1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power
  • 1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power
  • 1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power
  • 1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power
  • 1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power
Docking
  • 1 x AIM docking 16-pin pogo connector: 1 x USB 3.0, 12V power
  • 1 x AIM docking 16-pin pogo connector: 1 x USB 3.0, 12V power
  • 1 x AIM docking 16-pin pogo connector: 1 x USB 3.0, 12V power
  • 1 x AIM docking 16-pin pogo connector: 1 x USB 3.0, 12V power
  • 1 x AIM docking 16-pin pogo connector: 1 x USB 3.0, 12V power
  • 1 x AIM docking 16-pin pogo connector: 1 x USB 3.0, 12V power
  • 1 x AIM docking 16-pin pogo connector: 1 x USB 3.0, 12V power
Audio
Speaker
  • 2 x Internal water proof speakers (2 W)
  • 2 x Internal water proof speakers (2 W)
  • 2 x Internal water proof speakers (2 W)
  • 2 x Internal water proof speakers (2 W)
  • 2 x Internal water proof speakers (2 W)
  • 2 x Internal water proof speakers (2 W)
  • 2 x Internal water proof speakers (2 W)
Audio Jack
  • 1 x Audio combo jack (combines stereo audio output and mono microphone input)
  • 1 x Audio combo jack (combines stereo audio output and mono microphone input)
  • 1 x Audio combo jack (combines stereo audio output and mono microphone input)
  • 1 x Audio combo jack (combines stereo audio output and mono microphone input)
  • 1 x Audio combo jack (combines stereo audio output and mono microphone input)
  • 1 x Audio combo jack (combines stereo audio output and mono microphone input)
  • 1 x Audio combo jack (combines stereo audio output and mono microphone input)
Camera
Rear
  • 13.0-megapixel aufo-focus camera with LED flash
  • 13.0-megapixel aufo-focus camera with LED flash
  • 13.0-megapixel aufo-focus camera with LED flash
  • 13.0-megapixel aufo-focus camera with LED flash
  • 13.0-megapixel aufo-focus camera with LED flash
  • 13.0-megapixel aufo-focus camera with LED flash
  • 13.0-megapixel aufo-focus camera with LED flash
Front
  • 5 megapixel fixed-focus camera
  • 5 megapixel fixed-focus camera
  • 5 megapixel fixed-focus camera
  • 5 megapixel fixed-focus camera
  • 5 megapixel fixed-focus camera
  • 5 megapixel fixed-focus camera
  • 5 megapixel fixed-focus camera
Sensors
Sensors
  • Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope
  • Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope
  • Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope
  • Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope
  • Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope
  • Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope
  • Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope
System Indicator
  • Full: green (100%); Charging: blue; Low: orange (10%)
  • Full: green (100%); Charging: blue; Low: orange (10%)
  • Full: green (100%); Charging: blue; Low: orange (10%)
  • Full: green (100%); Charging: blue; Low: orange (10%)
  • Full: green (100%); Charging: blue; Low: orange (10%)
  • Full: green (100%); Charging: blue; Low: orange (10%)
  • Full: green (100%); Charging: blue; Low: orange (10%)
Power System
Voltage Input
  • USB Type-C: 20V/3.25A ; Docking pogo: 12V/2A
  • USB Type-C: 20V/3.25A ; Docking pogo: 12V/2A
  • USB Type-C: 20V/3.25A ; Docking pogo: 12V/2A
  • USB Type-C: 20V/3.25A ; Docking pogo: 12V/2A
  • USB Type-C: 20V/3.25A ; Docking pogo: 12V/2A
  • USB Type-C: 20V/3.25A ; Docking pogo: 12V/2A
  • USB Type-C: 20V/3.25A ; Docking pogo: 12V/2A
Battery

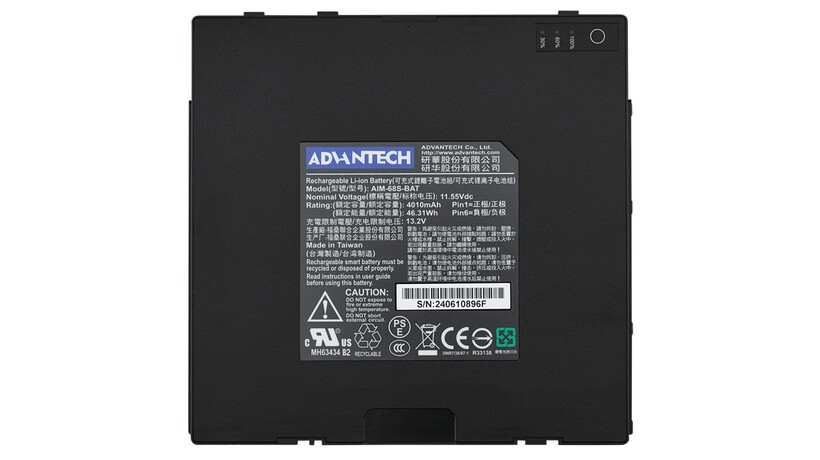

  • Smart battery with capacity LED indicators; 11.55V, 4010mAh, 46.31Wh ; Operating time: Up to 5.5 hours (depending on usage scenario) ; Charging time: < 3 hours
  • Smart battery with capacity LED indicators; 11.55V, 4010mAh, 46.31Wh ; Operating time: Up to 5.5 hours (depending on usage scenario) ; Charging time: < 3 hours
  • Smart battery with capacity LED indicators; 11.55V, 4010mAh, 46.31Wh ; Operating time: Up to 5.5 hours (depending on usage scenario) ; Charging time: < 3 hours
  • Smart battery with capacity LED indicators; 11.55V, 4010mAh, 46.31Wh ; Operating time: Up to 5.5 hours (depending on usage scenario) ; Charging time: < 3 hours
  • Smart battery with capacity LED indicators; 11.55V, 4010mAh, 46.31Wh ; Operating time: Up to 5.5 hours (depending on usage scenario) ; Charging time: < 3 hours
  • Smart battery with capacity LED indicators; 11.55V, 4010mAh, 46.31Wh ; Operating time: Up to 5.5 hours (depending on usage scenario) ; Charging time: < 3 hours
  • Smart battery with capacity LED indicators; 11.55V, 4010mAh, 46.31Wh ; Operating time: Up to 5.5 hours (depending on usage scenario) ; Charging time: < 3 hours
Control Buttons
  • 1 x Power button, 2 x Volume key (up/down), 1 x Programmable button
  • 1 x Power button, 2 x Volume key (up/down), 1 x Programmable button
  • 1 x Power button, 2 x Volume key (up/down), 1 x Programmable button
  • 1 x Power button, 2 x Volume key (up/down), 1 x Programmable button
  • 1 x Power button, 2 x Volume key (up/down), 1 x Programmable button
  • 1 x Power button, 2 x Volume key (up/down), 1 x Programmable button
  • 1 x Power button, 2 x Volume key (up/down), 1 x Programmable button
Environment
Operating Temperature
  • 0 ~ 40 °C (32 ~ 104 °F)/ Discharging: 0 ~ 40° C (32 ~ 104 °F)/ Charging: 0 ~ 35 °C (32 ~ 95 °F)"
  • 0 ~ 40 °C (32 ~ 104 °F)/ Discharging: 0 ~ 40° C (32 ~ 104 °F)/ Charging: 0 ~ 35 °C (32 ~ 95 °F)"
  • 0 ~ 40 °C (32 ~ 104 °F)/ Discharging: 0 ~ 40° C (32 ~ 104 °F)/ Charging: 0 ~ 35 °C (32 ~ 95 °F)"
  • 0 ~ 40 °C (32 ~ 104 °F)/ Discharging: 0 ~ 40° C (32 ~ 104 °F)/ Charging: 0 ~ 35 °C (32 ~ 95 °F)"
  • 0 ~ 40 °C (32 ~ 104 °F)/ Discharging: 0 ~ 40° C (32 ~ 104 °F)/ Charging: 0 ~ 35 °C (32 ~ 95 °F)"
  • 0 ~ 40 °C (32 ~ 104 °F)/ Discharging: 0 ~ 40° C (32 ~ 104 °F)/ Charging: 0 ~ 35 °C (32 ~ 95 °F)"
  • 0 ~ 40 °C (32 ~ 104 °F)/ Discharging: 0 ~ 40° C (32 ~ 104 °F)/ Charging: 0 ~ 35 °C (32 ~ 95 °F)"
Shock/Vibration
  • IEC60068-2-27 & IEC60068-2-64
  • IEC60068-2-27 & IEC60068-2-64
  • IEC60068-2-27 & IEC60068-2-64
  • IEC60068-2-27 & IEC60068-2-64
  • IEC60068-2-27 & IEC60068-2-64
  • IEC60068-2-27 & IEC60068-2-64
  • IEC60068-2-27 & IEC60068-2-64
Drop
  • 1.2M
  • 1.2M
  • 1.2M
  • 1.2M
  • 1.2M
  • 1.2M
  • 1.2M
Storage Temperature
  • -20 ~ 60 °C/-4 ~ 140 °F
  • -20 ~ 60 °C/-4 ~ 140 °F
  • -20 ~ 60 °C/-4 ~ 140 °F
  • -20 ~ 60 °C/-4 ~ 140 °F
  • -20 ~ 60 °C/-4 ~ 140 °F
  • -20 ~ 60 °C/-4 ~ 140 °F
  • -20 ~ 60 °C/-4 ~ 140 °F
Humidity
  • Operating: 95% @40°C non-condensing ; Storage: 95% @60°C non-condensing
  • Operating: 95% @40°C non-condensing ; Storage: 95% @60°C non-condensing
  • Operating: 95% @40°C non-condensing ; Storage: 95% @60°C non-condensing
  • Operating: 95% @40°C non-condensing ; Storage: 95% @60°C non-condensing
  • Operating: 95% @40°C non-condensing ; Storage: 95% @60°C non-condensing
  • Operating: 95% @40°C non-condensing ; Storage: 95% @60°C non-condensing
  • Operating: 95% @40°C non-condensing ; Storage: 95% @60°C non-condensing
IP Rating
  • IP65
  • IP65
  • IP65
  • IP65
  • IP65
  • IP65
  • IP65
Security
  • TPM 2.0
  • TPM 2.0
  • TPM 2.0
  • TPM 2.0
  • TPM 2.0
  • TPM 2.0
  • TPM 2.0
Warranty
-
  • 2 years
  • 2 years
  • 2 years
  • 2 years
  • 2 years
  • 2 years
  • 2 years
Mechanical
Dimensions (W x H x D)
  • 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in)
  • 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in)
  • 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in)
  • 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in)
  • 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in)
  • 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in)
  • 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in)
Weight
  • 1.1 kg (2.4 lb)
  • 1.1 kg (2.4 lb)
  • 1.1 kg (2.4 lb)
  • 1.1 kg (2.4 lb)
  • 1.1 kg (2.4 lb)
  • 1.1 kg (2.4 lb)
  • 1.1 kg (2.4 lb)
Physical Characteristics
Color
  • White/Blue
  • White/Blue
  • White/Blue
  • White/Blue
  • White/Blue
  • White/Blue
  • White/Blue
Certification
  • FCC, CE, UKCA, IEC/EN/UL60601-1, EN 60601-1-2, TELEC, VCCI, CCC, RCN, IC
  • FCC, CE, UKCA, IEC/EN/UL60601-1, EN 60601-1-2, TELEC, VCCI, CCC, RCN, IC
  • FCC, CE, UKCA, IEC/EN/UL60601-1, EN 60601-1-2, TELEC, VCCI, CCC, RCN, IC
  • FCC, CE, UKCA, IEC/EN/UL60601-1, EN 60601-1-2, TELEC, VCCI, CCC, RCN, IC
  • FCC, CE, UKCA, IEC/EN/UL60601-1, EN 60601-1-2, TELEC, VCCI, CCC, RCN, IC
  • FCC, CE, UKCA, IEC/EN/UL60601-1, EN 60601-1-2, TELEC, VCCI, CCC, RCN, IC
  • FCC, CE, UKCA, IEC/EN/UL60601-1, EN 60601-1-2, TELEC, VCCI, CCC, RCN, IC

配件

联系研华
