医用平板电脑

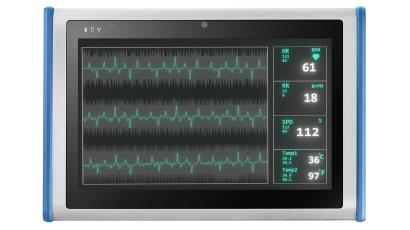

MIT-W102

10.1" 医疗级平板电脑，搭载 Intel®Pentium® 处理器和电容触摸屏

  • Intel® 奔腾® N4200 四核处理器
  • 支持Windows 10 IOT 和Linux 操作系统
  • 10.1" WUXGA 显示屏，十点触控电容屏
  • IP65等级防水防尘, 支持 5-ft （约1.5米）落摔
  • 紧凑型轻薄设计 (20 mm/0.79 in)
  • 无线通讯, 包含Wi-Fi, 蓝牙, 和NFC (可选)
  • 可选配件，包含桌上型底座, VESA 底座, 橡胶缓冲器/手带, 和3合1 多功能支架
  • 支持研华DeviceOn/iService远程设备管理软件（可选）

认证：

技术资源链接：

产品型录 技术文件下载
  • 10.1" 医疗级平板电脑，搭载 Intel®Pentium® 处理器和电容触摸屏

规格

System
Memory
  • 4GB DDR4
  • 8GB DDR4
Processor
  • Intel® Pentium® N4200 processor
  • Intel® Pentium® N4200 processor
Max. Speed
  • Quad-core 1.1GHz (burst frequency: 2.5GHz)
  • Quad-core 1.1GHz (burst frequency: 2.5GHz)
Operating System
  • Windows 10 IoT Enterprise LTSC, Linux (available upon request)
  • Windows 10 IoT Enterprise LTSC, Linux (available upon request)
Storage
SSD
  • 64GB
  • 128GB
Communications
NFC
  • N/A
  • ISO 15693, ISO 14443A/B, FeliCa, MIFARE, Tag-it, My-D, M24LRXX, I code2
WiFi
  • Wireless IEEE 802.11a/b/g/n/ac
  • Wireless IEEE 802.11a/b/g/n/ac
Bluetooth
  • Bluetooth V5.0,V4.2, V4.1, V4.0 LE, V3.0+HS, Bluetooth V2.1+EDR system
  • Bluetooth V5.0,V4.2, V4.1, V4.0 LE, V3.0+HS, Bluetooth V2.1+EDR system
Camera
Front
  • N/A
  • 2 megapixel fixed-focus camera
Rear
  • N/A
  • 5 megapixel auto-focus camera with LED flash
Display
Type
  • 10.1" TFT LCD panel
  • 10.1" TFT LCD panel
Resolution
  • 1920 x 1200
  • 1920 x 1200
Touch Type
  • Projective capacitive multi-touch screen
  • Projective capacitive multi-touch screen
Glass Type
  • Enhanced glass with anti-glare coating
  • Enhanced glass with anti-glare coating
Audio
  • 1 x Internal speaker, 1 x internal mono microphone
  • 1 x Internal speaker, 1 x internal mono microphone
I/O
STANDARD I/O PORT
  • 1 x USB 3.0 Type-C supporting data/charging/DP (output 5V/1A), 1 x USB 3.0 Type-A,
    1 x DC jack, 1 x Combo audio, 1 x expansion port, 1 x docking port
  • 1 x USB 3.0 Type-C supporting data/charging/DP (output 5V/1A), 1 x USB 3.0 Type-A,
    1 x DC jack, 1 x Combo audio, 1 x expansion port, 1 x docking port
Control Buttons
  • 1 x Power button, 2 x Programmable button
  • 1 x Power button, 2 x Programmable button
Security
  • TPM 2.0
  • TPM 2.0
System Indicator
  • Power, battery status, HDD, wireless connectivity, Bluetooth
  • Power, battery status, HDD, wireless connectivity, Bluetooth
Power System
Voltage Input
  • 100 ~ 240VAC, 50 ~ 60Hz, 1.4A ~ 0.8A
  • 100 ~ 240VAC, 50 ~ 60Hz, 1.4A ~ 0.8A
Voltage Output
  • 19VDC, 3.16A (max.), 60 W
  • 19VDC, 3.16A (max.), 60 W
Battery
  • Main Battery: 31.7 Whrs (11.1V 2860mAh)
  • Main Battery: 31.7 Whrs (11.1V 2860mAh)
Environment
IP Rating
  • IP65
  • IP65
Operating Temperature
  • 0 ~ 35 °C (32 ~ 95 °F)
  • 0 ~ 35 °C (32 ~ 95 °F)
Storage Temperature
  • -20 ~ 60 °C (-4 ~ 140°F)
  • -20 ~ 60 °C (-4 ~ 140°F)
Humidity (Operating)
  • 10% ~ 95% @ 35 °C/95 °F non-condensing
  • 10% ~ 95% @ 35 °C/95 °F non-condensing
Humidity (Non-operating)
  • 10% ~ 95% @60 °C/140 °F non-condensing
  • 10% ~ 95% @60 °C/140 °F non-condensing
Vibration (Operating)
  • 1Grms
  • 1Grms
Vibration (Non-operating)
  • 2Grms
  • 2Grms
Shock Resistance
  • Operating: 20 G, 11 ms; shipping: 1 ~ 200 Hz, 1.15G (refer to ISTA 2A)
  • Operating: 20 G, 11 ms; shipping: 1 ~ 200 Hz, 1.15G (refer to ISTA 2A)
Drop Test
  • Up to 152.4 cm/5 ft onto plywood over concrete
  • Up to 152.4 cm/5 ft onto plywood over concrete
Physical Characteristics
Dimensions (W x D x H)
  • 292 x 196 x 20 mm (11.5 x 7.7 x 0.79 in)
  • 292 x 196 x 20 mm (11.5 x 7.7 x 0.79 in)
Weight
  • 1.1 kg (2.4 lb)
  • 1.1 kg (2.4 lb)
Certification
  • FCC Class B, CE, IEC/EN/UL 60601-1, 62368-1
  • FCC Class B, CE, IEC/EN/UL 60601-1, 62368-1
