医用平板电脑

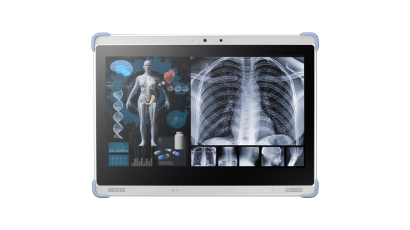

AIM-89H

13.3英寸医疗级平板电脑，配备Intel® Core™ i5处理器

  • 13.3英寸全高清IPS投射电容10点多触控屏，带有防指纹、防眩光康宁®大猩猩®玻璃
  • Intel® Core™ i5 处理器，支持 Windows 10/11 IoT Enterprise ，高性能
  • EN/UL 60601 认证，通过防护过热和电子干扰来确保患者和医疗人员的安全
  • 配备了DeviceOn - iService Suite软件，用于远程设备管理
  • 支持触摸模式，可配合手套操作和触控笔使用
  • IP65级防护，防水防尘
  • MIL-STD-810G 冲击/振动符合性，通过4英尺跌落测试
  • 内置 Wi-Fi 6、蓝牙 5.2 和千兆 LAN，用于高速连接
  • 16针pogo连接器，用于桌面底座和VESA安装支架

认证：

技术资源链接：

产品型录 技术文件下载
  • 13.3英寸医疗级平板电脑，配备Intel® Core™ i5处理器

规格

Computing System
Operating System
  • Windows 10 LTSC 21H2
  • Windows 10 LTSC 21H2
  • Windows 11 GAC 22H2
  • Windows 11 GAC 22H2
  • N/A
  • N/A
System
Memory
  • 8GB DDR4
  • 8GB DDR4
  • 8GB DDR4
  • 8GB DDR4
  • 8GB DDR4
  • 8GB DDR4
Processor
  • Intel® Core™ i5-1145G7E Processor quad-core, 1.5 GHz (8M Cache, up to 4.10 GHz)
  • Intel® Core™ i5-1145G7E Processor quad-core, 1.5 GHz (8M Cache, up to 4.10 GHz)
  • Intel® Core™ i5-1145G7E Processor quad-core, 1.5 GHz (8M Cache, up to 4.10 GHz)
  • Intel® Core™ i5-1145G7E Processor quad-core, 1.5 GHz (8M Cache, up to 4.10 GHz)
  • Intel® Core™ i5-1145G7E Processor quad-core, 1.5 GHz (8M Cache, up to 4.10 GHz)
  • Intel® Core™ i5-1145G7E Processor quad-core, 1.5 GHz (8M Cache, up to 4.10 GHz)
Storage
SSD
  • 1 x m.2 SSD (256GB)
  • 1 x m.2 SSD (256GB)
  • 1 x m.2 SSD (256GB)
  • 1 x m.2 SSD (256GB)
  • 1 x m.2 SSD (256GB)
  • 1 x m.2 SSD (256GB)
Display
Type
  • 13.3" IPS LCD
  • 13.3" IPS LCD
  • 13.3" IPS LCD
  • 13.3" IPS LCD
  • 13.3" IPS LCD
  • 13.3" IPS LCD
Resolution
  • 1920 x 1080
  • 1920 x 1080
  • 1920 x 1080
  • 1920 x 1080
  • 1920 x 1080
  • 1920 x 1080
Brightness (cd/m2)
  • 400cd/m2
  • 400cd/m2
  • 400cd/m2
  • 400cd/m2
  • 400cd/m2
  • 400cd/m2
Touch Screen
  • Corning® Gorilla® Glass 3 with 10-point P-CAP touch control
  • Corning® Gorilla® Glass 3 with 10-point P-CAP touch control
  • Corning® Gorilla® Glass 3 with 10-point P-CAP touch control
  • Corning® Gorilla® Glass 3 with 10-point P-CAP touch control
  • Corning® Gorilla® Glass 3 with 10-point P-CAP touch control
  • Corning® Gorilla® Glass 3 with 10-point P-CAP touch control
Touch Mode
  • Normal (support under water puddle), Glove
  • Normal (support under water puddle), Glove
  • Normal (support under water puddle), Glove
  • Normal (support under water puddle), Glove
  • Normal (support under water puddle), Glove
  • Normal (support under water puddle), Glove
Wireless Communication
WLAN/Bluetooth
  • IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6) / Bluetooth® v5.2
  • IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6) / Bluetooth® v5.2
  • IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6) / Bluetooth® v5.2
  • IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6) / Bluetooth® v5.2
  • IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6) / Bluetooth® v5.2
  • IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6) / Bluetooth® v5.2
I/O
STANDARD I/O PORT
  • 1 x Gigabit LAN, 1 x HDMI, 2 x USB-A 3.1 Gen 2, 1 x Audio Jack, 1 x 19 VDC-in jack, 1 x USB-C 3.1 Gen 2 (10Gb/s, HDMI Alt,
    5V, 2A)
  • 1 x Gigabit LAN, 1 x HDMI, 2 x USB-A 3.1 Gen 2, 1 x Audio Jack, 1 x 19 VDC-in jack, 1 x USB-C 3.1 Gen 2 (10Gb/s, HDMI Alt,
    5V, 2A)
  • 1 x Gigabit LAN, 1 x HDMI, 2 x USB-A 3.1 Gen 2, 1 x Audio Jack, 1 x 19 VDC-in jack, 1 x USB-C 3.1 Gen 2 (10Gb/s, HDMI Alt,
    5V, 2A)
  • 1 x Gigabit LAN, 1 x HDMI, 2 x USB-A 3.1 Gen 2, 1 x Audio Jack, 1 x 19 VDC-in jack, 1 x USB-C 3.1 Gen 2 (10Gb/s, HDMI Alt,
    5V, 2A)
  • 1 x Gigabit LAN, 1 x HDMI, 2 x USB-A 3.1 Gen 2, 1 x Audio Jack, 1 x 19 VDC-in jack, 1 x USB-C 3.1 Gen 2 (10Gb/s, HDMI Alt,
    5V, 2A)
  • 1 x Gigabit LAN, 1 x HDMI, 2 x USB-A 3.1 Gen 2, 1 x Audio Jack, 1 x 19 VDC-in jack, 1 x USB-C 3.1 Gen 2 (10Gb/s, HDMI Alt,
    5V, 2A)
Buttons
  • 1 x Power button, 2 x Volume key (up/down), 3 x Programmable button
  • 1 x Power button, 2 x Volume key (up/down), 3 x Programmable button
  • 1 x Power button, 2 x Volume key (up/down), 3 x Programmable button
  • 1 x Power button, 2 x Volume key (up/down), 3 x Programmable button
  • 1 x Power button, 2 x Volume key (up/down), 3 x Programmable button
  • 1 x Power button, 2 x Volume key (up/down), 3 x Programmable button
Docking
  • 1 x AIM docking 16-pin pogo connector: 1 x USB 3.1 Gen 2
  • 1 x AIM docking 16-pin pogo connector: 1 x USB 3.1 Gen 2
  • 1 x AIM docking 16-pin pogo connector: 1 x USB 3.1 Gen 2
  • 1 x AIM docking 16-pin pogo connector: 1 x USB 3.1 Gen 2
  • 1 x AIM docking 16-pin pogo connector: 1 x USB 3.1 Gen 2
  • 1 x AIM docking 16-pin pogo connector: 1 x USB 3.1 Gen 2
Camera
Front
  • 5 megapixel fixed-focus camera
  • 5 megapixel fixed-focus camera
  • 5 megapixel fixed-focus camera
  • 5 megapixel fixed-focus camera
  • 5 megapixel fixed-focus camera
  • 5 megapixel fixed-focus camera
Rear
  • 8 megapixel auto-focus camera with LED flash
  • 8 megapixel auto-focus camera with LED flash
  • 8 megapixel auto-focus camera with LED flash
  • 8 megapixel auto-focus camera with LED flash
  • 8 megapixel auto-focus camera with LED flash
  • 8 megapixel auto-focus camera with LED flash
Sensors
Sensors
  • Ambient Light Sensor, G-sensor, Gyroscope
  • Ambient Light Sensor, G-sensor, Gyroscope
  • Ambient Light Sensor, G-sensor, Gyroscope
  • Ambient Light Sensor, G-sensor, Gyroscope
  • Ambient Light Sensor, G-sensor, Gyroscope
  • Ambient Light Sensor, G-sensor, Gyroscope
Environment
Operating Temperature
  • 0 ~ 40 °C (32 ~ 104 °F)/ Discharging: 0 ~ 40° C (32 ~ 104 °F)/ Charging: 0 ~ 35 °C (32 ~ 95 °F)"
  • 0 ~ 40 °C (32 ~ 104 °F)/ Discharging: 0 ~ 40° C (32 ~ 104 °F)/ Charging: 0 ~ 35 °C (32 ~ 95 °F)"
  • 0 ~ 40 °C (32 ~ 104 °F)/ Discharging: 0 ~ 40° C (32 ~ 104 °F)/ Charging: 0 ~ 35 °C (32 ~ 95 °F)"
  • 0 ~ 40 °C (32 ~ 104 °F)/ Discharging: 0 ~ 40° C (32 ~ 104 °F)/ Charging: 0 ~ 35 °C (32 ~ 95 °F)"
  • 0 ~ 40 °C (32 ~ 104 °F)/ Discharging: 0 ~ 40° C (32 ~ 104 °F)/ Charging: 0 ~ 35 °C (32 ~ 95 °F)"
  • 0 ~ 40 °C (32 ~ 104 °F)/ Discharging: 0 ~ 40° C (32 ~ 104 °F)/ Charging: 0 ~ 35 °C (32 ~ 95 °F)"
Storage Temperature
  • -20 ~ 60 °C/-4 ~ 140 °F
  • -20 ~ 60 °C/-4 ~ 140 °F
  • -20 ~ 60 °C/-4 ~ 140 °F
  • -20 ~ 60 °C/-4 ~ 140 °F
  • -20 ~ 60 °C/-4 ~ 140 °F
  • -20 ~ 60 °C/-4 ~ 140 °F
IP Rating
  • IP65
  • IP65
  • IP65
  • IP65
  • IP65
  • IP65
Shock/Vibration
  • MIL-STD-810G standard
  • MIL-STD-810G standard
  • MIL-STD-810G standard
  • MIL-STD-810G standard
  • MIL-STD-810G standard
  • MIL-STD-810G standard
Drop
  • MIL-STD-810G standard, Up to 122 cm (4 ft) onto plywood over concrete
  • MIL-STD-810G standard, Up to 122 cm (4 ft) onto plywood over concrete
  • MIL-STD-810G standard, Up to 122 cm (4 ft) onto plywood over concrete
  • MIL-STD-810G standard, Up to 122 cm (4 ft) onto plywood over concrete
  • MIL-STD-810G standard, Up to 122 cm (4 ft) onto plywood over concrete
  • MIL-STD-810G standard, Up to 122 cm (4 ft) onto plywood over concrete
Humidity
  • Operating: 90% @ 40 °C non-condensing Storage: 95% @ 45 °C non-condensing Package: 95% @ 60 °C non-condensing"
  • Operating: 90% @ 40 °C non-condensing Storage: 95% @ 45 °C non-condensing Package: 95% @ 60 °C non-condensing"
  • Operating: 90% @ 40 °C non-condensing Storage: 95% @ 45 °C non-condensing Package: 95% @ 60 °C non-condensing"
  • Operating: 90% @ 40 °C non-condensing Storage: 95% @ 45 °C non-condensing Package: 95% @ 60 °C non-condensing"
  • Operating: 90% @ 40 °C non-condensing Storage: 95% @ 45 °C non-condensing Package: 95% @ 60 °C non-condensing"
  • Operating: 90% @ 40 °C non-condensing Storage: 95% @ 45 °C non-condensing Package: 95% @ 60 °C non-condensing"
Mechanical
Dimensions (W x H x D)
  • 330 x 240 x 20.8 mm (13 x 9.4 x 0.8 in)
  • 330 x 240 x 20.8 mm (13 x 9.4 x 0.8 in)
  • 330 x 240 x 20.8 mm (13 x 9.4 x 0.8 in)
  • 330 x 240 x 20.8 mm (13 x 9.4 x 0.8 in)
  • 330 x 240 x 20.8 mm (13 x 9.4 x 0.8 in)
  • 330 x 240 x 20.8 mm (13 x 9.4 x 0.8 in)
Weight
  • 1.8 kg (3.97 lb)
  • 1.8 kg (3.97 lb)
  • 1.8 kg (3.97 lb)
  • 1.8 kg (3.97 lb)
  • 1.8 kg (3.97 lb)
  • 1.8 kg (3.97 lb)
Audio
Audio Jack
  • 1 x Audio combo jack (combines stereo audio output and mono microphone input)
  • 1 x Audio combo jack (combines stereo audio output and mono microphone input)
  • 1 x Audio combo jack (combines stereo audio output and mono microphone input)
  • 1 x Audio combo jack (combines stereo audio output and mono microphone input)
  • 1 x Audio combo jack (combines stereo audio output and mono microphone input)
  • 1 x Audio combo jack (combines stereo audio output and mono microphone input)
Speaker
  • 2 W x 2
  • 2 W x 2
  • 2 W x 2
  • 2 W x 2
  • 2 W x 2
  • 2 W x 2
System Indicator
  • Full: green (90-100%); Charging: blue; Low: red (<10%)
  • Full: green (90-100%); Charging: blue; Low: red (<10%)
  • Full: green (90-100%); Charging: blue; Low: red (<10%)
  • Full: green (90-100%); Charging: blue; Low: red (<10%)
  • Full: green (90-100%); Charging: blue; Low: red (<10%)
  • Full: green (90-100%); Charging: blue; Low: red (<10%)
Power System
Battery
  • "Embedded Lithium-ion battery; 10.8V, 4660 mAh, 50.32 WHr
    Operating time: Up to 4.5 hours (depending on usage scenario)
    Charging time: < 3 hours"
  • "Embedded Lithium-ion battery; 10.8V, 4660 mAh, 50.32 WHr
    Operating time: Up to 4.5 hours (depending on usage scenario)
    Charging time: < 3 hours"
  • "Embedded Lithium-ion battery; 10.8V, 4660 mAh, 50.32 WHr
    Operating time: Up to 4.5 hours (depending on usage scenario)
    Charging time: < 3 hours"
  • "Embedded Lithium-ion battery; 10.8V, 4660 mAh, 50.32 WHr
    Operating time: Up to 4.5 hours (depending on usage scenario)
    Charging time: < 3 hours"
  • "Embedded Lithium-ion battery; 10.8V, 4660 mAh, 50.32 WHr
    Operating time: Up to 4.5 hours (depending on usage scenario)
    Charging time: < 3 hours"
  • "Embedded Lithium-ion battery; 10.8V, 4660 mAh, 50.32 WHr
    Operating time: Up to 4.5 hours (depending on usage scenario)
    Charging time: < 3 hours"
Voltage Input
  • DC jack: 19V/4.74A (90W)
  • DC jack: 19V/4.74A (90W)
  • DC jack: 19V/4.74A (90W)
  • DC jack: 19V/4.74A (90W)
  • DC jack: 19V/4.74A (90W)
  • DC jack: 19V/4.74A (90W)
Physical Characteristics
Color
  • White/Blue
  • White/Blue
  • White/Blue
  • White/Blue
  • White/Blue
  • White/Blue
Certifications
-
  • CCC, CE, FCC Class B, UL60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2(EMC)
  • CCC, CE, FCC Class B, UL60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2(EMC)
  • CCC, CE, FCC Class B, UL60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2(EMC)
  • CCC, CE, FCC Class B, UL60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2(EMC)
  • CCC, CE, FCC Class B, UL60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2(EMC)
  • CCC, CE, FCC Class B, UL60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2(EMC)
