高效能边缘可视化平台

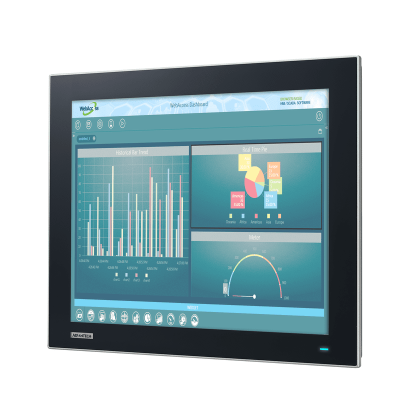

TPC-317

17" SXGA TFT LED LCD工业平板电脑，搭载第八代Intel®Core™i3/ i5/ i7处理器，内置8G DDR4 RAM

  • 工业级17英寸SXGA TFT LCD, 50K小时LED背光寿命
  • 第8代Gen. Intel®Core™i3- 8145UE双核/ i5-8365UE四核/ i7-8665UE四核处理器，内置8GB DDR4 SO-DIMM
  • 双通道内存插槽最多支持64G
  • 紧凑的无风扇嵌入式设计，铝合金前面板和外壳接地保护
  • 纯平触摸屏，5线电阻触摸控制，IP66级防护等级
  • 支持全尺寸Mini PCIe扩展和两个M.2插槽(NVMe, 5G)
  • 通过iDoor技术可扩展不同的系统I/O和隔离的数字I/O
  • 通过iDoor技术支持现场总线协议/GPS/GPRS/Wi-Fi功能
  • 支持TPM2.0安全硬件

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 17" SXGA TFT LED LCD工业平板电脑，搭载第八代Intel®Core™i3/ i5/ i7处理器，内置8G DDR4 RAM

规格

Environment
Ingress Protection
  • Front Panel IP66
  • Front Panel IP66
  • Front Panel IP66
Operating Temperature
  • -10~55 °C (14~131 °F)
  • -10~55 °C (14~131 °F)
  • -10~55 °C (14~131 °F)
Storage Temperature
  • -20~70 °C (-4~158 °F)
  • -20~70 °C (-4~158 °F)
  • -20~70 °C (-4~158 °F)
Vibration Protection
  • 1 Grms, random
  • 1 Grms, random
  • 1 Grms, random
General
Humidity (Operating)
  • 10~95% RH (non-condensing)
  • 10~95% RH (non-condensing)
  • 10~95% RH (non-condensing)
Hardware
BIOS
  • AMI UEFI
  • AMI UEFI
  • AMI UEFI
Certification
  • CB, UL, CE, FCC Class A, CCC, BSMI
  • CB, UL, CE, FCC Class A, CCC, BSMI
  • CB, UL, CE, FCC Class A, CCC, BSMI
CPU
  • 8th Gen. Intel® Core™ i7-8665UE 1.70GHz Quad-Core
  • 8th Gen. Intel® Core™ i5-8365UE 1.60GHz Quad-Core
  • 8th Gen. Intel® Core™ i3-8145UE 2.20GHz Dual-Core
I/O
  • 1 x USB 2.0, 4 x USB 3.2, 1 x iDoor slot
  • 1 x USB 2.0, 4 x USB 3.2, 1 x iDoor slot
  • 1 x USB 2.0, 4 x USB 3.2, 1 x iDoor slot
LAN
  • 1 x 10/100/1000 Mbps, 1 x 10/100/1000/2500 Mbps
  • 1 x 10/100/1000 Mbps, 1 x 10/100/1000/2500 Mbps
  • 1 x 10/100/1000 Mbps, 1 x 10/100/1000/2500 Mbps
Memory
  • 1 x SO-DIMM with 8 GB DDR4 2400 MHz, 2 x DDR4 SO-DIMM Slot
  • 1 x SO-DIMM with 8 GB DDR4 2400 MHz, 2 x DDR4 SO-DIMM Slot
  • 1 x SO-DIMM with 8 GB DDR4 2400 MHz, 2 x DDR4 SO-DIMM Slot
OS Support
  • Microsoft® Windows 10 LTSC, Linux, Android
  • Microsoft® Windows 10 LTSC, Linux, Android
  • Microsoft® Windows 10 LTSC, Linux, Android
Power Consumption
  • 45.48 W @ 24 VDC
  • 45.48 W @ 24 VDC
  • 45.48 W @ 24 VDC
Storage
  • 1 x SATA M.2 SSD slot (2280 M-Key)
    ;
    1 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x M.2 B key
  • 1 x SATA M.2 SSD slot (2280 M-Key)
    ;
    1 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x M.2 B key
  • 1 x SATA M.2 SSD slot (2280 M-Key)
    ;
    1 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x M.2 B key
Watchdog Timer
  • 15~255 s
  • 15~255 s
  • 15~255 s
I/O Interface
Audio
  • Line-Out, Microphone
  • Line-Out, Microphone
  • Line-Out, Microphone
Displays
  • 1 x DP
  • 1 x DP
  • 1 x DP
Expansion
  • 1 x Full-size mPCIe Slot, 1 x SIM card Slot
  • 1 x Full-size mPCIe Slot, 1 x SIM card Slot
  • 1 x Full-size mPCIe Slot, 1 x SIM card Slot
Serial Ports
  • 2 x RS-232/422/485
  • 2 x RS-232/422/485
  • 2 x RS-232/422/485
LCD Display
Backlight Life (hrs)
  • 50,000
  • 50,000
  • 50,000
Display Size
  • 17"
  • 17"
  • 17"
Luminance (cd/m2)
  • 300
  • 300
  • 300
Max. Resolution
  • 1280 x 1024
  • 1280 x 1024
  • 1280 x 1024
Viewing Angle (H/V°)
  • 160/140
  • 160/140
  • 160/140
Mechanical
Dimension (W x H x D)
  • 410.4 x 343.4 x 68 mm
  • 410.4 x 343.4 x 68 mm
  • 410.4 x 343.4 x 68 mm
Enclosure
  • Die-cast aluminum alloy
  • Die-cast aluminum alloy
  • Die-cast aluminum alloy
Mounting
  • Stand, Wall, VESA, Panel
  • Stand, Wall, VESA, Panel
  • Stand, Wall, VESA, Panel
Weight (Net)
  • 6.1 kg (13.45 lb)
  • 6.1 kg (13.45 lb)
  • 6.1 kg (13.45 lb)
Touchscreen
Touch Type
  • 5-wire resistive
  • 5-wire resistive
  • 5-wire resistive
