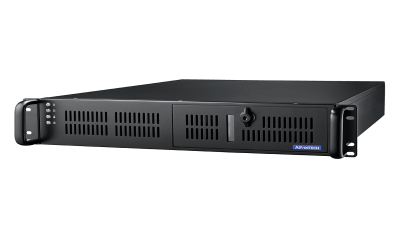

ACP-2010MB
2U上架式机箱,用于ATX/MicroATX母板支持后部支架

  • LED指示灯与声音警报通知,用于系统故障检测
  • ACP-2010MB的抗冲击磁盘驱动器托架可支持1个5.25"和3个3.5"驱动器(1个前部可访问和2个内置)
  • 可通过多种转接卡支持3个全长PCI或PCIe扩展卡
  • 支持300 W / 400 W ATX PFC电源
  • 空气过滤器可重复使用、可清洗
2U上架式机箱,用于ATX/MicroATX母板支持后部支架

规格 下载规格表

Form Factor
  • Form Factor
Front I/O Interface
  • PS/2
Cooling
  • Fan
  • Air Filter
Environment
  • Operating-Temperature
  • Operating Shock
  • Non-Operating Vibration
  • Non-Operational Temperature
  • Operating Vibration (5 ~ 500 Hz)
Physical Characteristics
  • Weight
  • Dimensions (W x H x D)
Disk Drive Bay
  • Slim ODD
  • 5.25 External Bay
  • 3.5 External Bay
  • 3.5" Internal
Miscellaneous
  • LED Indicators
  • Rear Panel
Intelligent System Module
  • Remote Monitoring
Power Supply
  • Power Supply

Form Factor

  • Form Factor

    ACP-2010MB-00D 2U Rackmount
    ACP-2010MB-25D 2U Rackmount
    ACP-2010MB-35D 2U Rackmount

Front I/O Interface

  • PS/2

    ACP-2010MB-00D 1
    ACP-2010MB-25D 1
    ACP-2010MB-35D 1

Cooling

  • Fan

    ACP-2010MB-00D 2 (8 cm / 47 CFM each)
    ACP-2010MB-25D 2 (8 cm / 47 CFM each)
    ACP-2010MB-35D 2 (8 cm / 47 CFM each)
  • Air Filter

    ACP-2010MB-00D Yes
    ACP-2010MB-25D Yes
    ACP-2010MB-35D Yes

Environment

  • Operating-Temperature

    ACP-2010MB-00D 0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing)
    ACP-2010MB-25D 0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing)
    ACP-2010MB-35D 0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing)
  • Operating Shock

    ACP-2010MB-00D -
    ACP-2010MB-25D -
    ACP-2010MB-35D -
  • Non-Operating Vibration

    ACP-2010MB-00D 2 G
    ACP-2010MB-25D 2 G
    ACP-2010MB-35D 2 G
  • Non-Operational Temperature

    ACP-2010MB-00D -20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing
    ACP-2010MB-25D -20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing
    ACP-2010MB-35D -20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing
  • Operating Vibration (5 ~ 500 Hz)

    ACP-2010MB-00D 1 Grms
    ACP-2010MB-25D 1 Grms
    ACP-2010MB-35D 1 Grms

Physical Characteristics

  • Weight

    ACP-2010MB-00D 10.7 kg (23.5 lb)
    ACP-2010MB-25D 10.7 kg (23.5 lb)
    ACP-2010MB-35D 10.7 kg (23.5 lb)
  • Dimensions (W x H x D)

    ACP-2010MB-00D 482 x 88 x 480 mm (19" x 3.46" x 18.9")
    ACP-2010MB-25D 482 x 88 x 480 mm (19" x 3.46" x 18.9")
    ACP-2010MB-35D 482 x 88 x 480 mm (19" x 3.46" x 18.9")

Disk Drive Bay

  • Slim ODD

    ACP-2010MB-00D -
    ACP-2010MB-25D -
    ACP-2010MB-35D -
  • 5.25 External Bay

    ACP-2010MB-00D 1
    ACP-2010MB-25D 1
    ACP-2010MB-35D 1
  • 3.5 External Bay

    ACP-2010MB-00D 1
    ACP-2010MB-25D 1
    ACP-2010MB-35D 1
  • 3.5" Internal

    ACP-2010MB-00D 2
    ACP-2010MB-25D 2
    ACP-2010MB-35D 2

Miscellaneous

  • LED Indicators

    ACP-2010MB-00D Power On/Off, HDD Action, Fan Status, Temperature Status
    ACP-2010MB-25D Power On/Off, HDD Action, Fan Status, Temperature Status
    ACP-2010MB-35D Power On/Off, HDD Action, Fan Status, Temperature Status
  • Rear Panel

    ACP-2010MB-00D Two 9-pin D-Sub openings
    ACP-2010MB-25D Two 9-pin D-Sub openings
    ACP-2010MB-35D Two 9-pin D-Sub openings

Intelligent System Module

  • Remote Monitoring

    ACP-2010MB-00D CPU/System fan speed, CPU/System temperature
    ACP-2010MB-25D CPU/System fan speed, CPU/System temperature
    ACP-2010MB-35D CPU/System fan speed, CPU/System temperature

Power Supply

  • Power Supply

    ACP-2010MB-00D -
    ACP-2010MB-25D 250W (Single)
    ACP-2010MB-35D 350W (Single)
