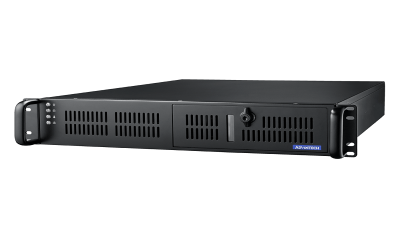

ACP-2320MB
2U上架式机箱,用于ATX/MicroATX母板支持后部支架

  • LED指示灯与声音警报通知,用于系统故障检测
  • 适合业务扩展的理想机箱
  • ACP-2320MB配有1个薄型光驱、2个内置3.5"驱动器和双可移动SAS/SATA HDD托架
  • 紧凑型2U高上架式机箱,支持ATX 母板
  • 可通过多种转接卡支持3个全长PCI或PCIe扩展卡
  • 易于维护的双SATA HDD托架,便于数据镜像
  • 前置LED指示灯显示系统警报
  • 支持300 W / 400 W ATX PFC电源
  • 前置USB和PS/2接口
  • 空气过滤器可重复使用、可清洗
  • 磁盘驱动器仓抗落下设计,支持2个internal 3.5 HDD
  • 前置且便于更换的空气过滤器
  • 前门可锁,禁止无权访问
  • 蝶形卡,最多支持3块全长PCI卡
  • 300W/400W ATX PFC电源供应
2U上架式机箱,用于ATX/MicroATX母板支持后部支架

规格 下载规格表

Form Factor
  • Form Factor
Front I/O Interface
  • PS/2
Cooling
  • Air Filter
  • Fan
Environment
  • Operating-Temperature
  • Non-Operational Temperature
  • Non-Operating Vibration
  • Operating Vibration (5 ~ 500 Hz)
Physical Characteristics
  • Weight
  • Dimensions (W x H x D)
Disk Drive Bay
  • Slim ODD
  • 3.5" Internal
  • 3.5 External Bay
  • Hot-swap Drive Bay
Miscellaneous
  • LED Indicators
  • Rear Panel
Intelligent System Module
  • Remote Monitoring

Form Factor

  • Form Factor

    ACP-2320MB-00D 2U Rackmount
    ACP-2320MB-35D 2U Rackmount

Front I/O Interface

  • PS/2

    ACP-2320MB-00D 1
    ACP-2320MB-35D 1

Cooling

  • Air Filter

    ACP-2320MB-00D Yes
    ACP-2320MB-35D Yes
  • Fan

    ACP-2320MB-00D 2 (8 cm / 47 CFM each) + 1 (6 cm / 28 CFM) for SATA storage unit
    ACP-2320MB-35D 2 (8 cm / 47 CFM each) + 1 (6 cm / 28 CFM) for SATA storage unit

Environment

  • Operating-Temperature

    ACP-2320MB-00D 0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing)
    ACP-2320MB-35D 0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing)
  • Non-Operational Temperature

    ACP-2320MB-00D -20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing
    ACP-2320MB-35D -20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing
  • Non-Operating Vibration

    ACP-2320MB-00D 2 G
    ACP-2320MB-35D 2 G
  • Operating Vibration (5 ~ 500 Hz)

    ACP-2320MB-00D 1 Grms
    ACP-2320MB-35D 1 Grms

Physical Characteristics

  • Weight

    ACP-2320MB-00D 10.7 kg (23.5 lb)
    ACP-2320MB-35D 10.7 kg (23.5 lb)
  • Dimensions (W x H x D)

    ACP-2320MB-00D 482 x 88 x 480 mm (19" x 3.46" x 18.9")
    ACP-2320MB-35D 482 x 88 x 480 mm (19" x 3.46" x 18.9")

Disk Drive Bay

  • Slim ODD

    ACP-2320MB-00D 1
    ACP-2320MB-35D 1
  • 3.5" Internal

    ACP-2320MB-00D 2
    ACP-2320MB-35D 2
  • 3.5 External Bay

    ACP-2320MB-00D 2
    ACP-2320MB-35D 2
  • Hot-swap Drive Bay

    ACP-2320MB-00D 2 (compatible with 3.5" or 2.5" devices)
    ACP-2320MB-35D 2 (compatible with 3.5" or 2.5" devices)

Miscellaneous

  • LED Indicators

    ACP-2320MB-00D Power, HDD, temperature, fan
    ACP-2320MB-35D Power, HDD, temperature, fan
  • Rear Panel

    ACP-2320MB-00D Two 9-pin D-Sub openings
    ACP-2320MB-35D Two 9-pin D-Sub openings

Intelligent System Module

  • Remote Monitoring

    ACP-2320MB-00D CPU/System fan speed, CPU/System temperature
    ACP-2320MB-35D CPU/System fan speed, CPU/System temperature
