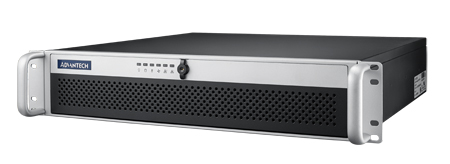

ACP-2020
2U Rackmount Short Depth Chassis for ATX and mATX Motherboard

  • 398mm短深2U机架式机箱
  • 支持ATX与mATX规格单处理器主板
  • 2个内置2.5"磁盘盒和2个“热插拔或外置”磁盘盒
  • 支持80plus 单相350W或500W冗余电源
  • 前置访问系统风扇,无顶盖,易于维护
  • 内置智能系统模块,支持系统风扇控制和远程管理
2U Rackmount Short Depth Chassis for ATX and mATX Motherboard

规格 下载规格表

Form Factor
  • Form Factor
Front I/O Interface
  • USB 3.0
Power Supply
  • Power Supply
Cooling
  • Air Filter
  • Fan
Environment
  • Operating-Temperature
  • Non-Operational Temperature
  • Operating Shock
  • Operating Vibration (5 ~ 500 Hz)
  • Non-Operating Vibration (5 ~ 500 Hz)
Physical Characteristics
  • Weight
  • Dimensions (W x H x D)
Disk Drive Bay
  • Slim ODD
  • 2.5" Internal
  • 2.5” External
  • Hot-swap Drive Bay
Miscellaneous
  • LED Indicators

Form Factor

  • Form Factor

    ACP-2020MB-50RE 2U Rackmount
    ACP-2020MB-35B 2U Rackmount

Front I/O Interface

  • USB 3.0

    ACP-2020MB-50RE 2
    ACP-2020MB-35B 2

Power Supply

  • Power Supply

    ACP-2020MB-50RE 500W (Redundant)
    ACP-2020MB-35B 350W (Single)

Cooling

  • Air Filter

    ACP-2020MB-50RE Yes
    ACP-2020MB-35B Yes
  • Fan

    ACP-2020MB-50RE 1 ( 8 cm / 41 CFM )
    ACP-2020MB-35B 1 ( 8 cm / 41 CFM )

Environment

  • Operating-Temperature

    ACP-2020MB-50RE 0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing)
    ACP-2020MB-35B 0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing)
  • Non-Operational Temperature

    ACP-2020MB-50RE -20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing
    ACP-2020MB-35B -20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing
  • Operating Shock

    ACP-2020MB-50RE 10 G (with 11 ms duration, half sine wave)
    ACP-2020MB-35B 10 G (with 11 ms duration, half sine wave)
  • Operating Vibration (5 ~ 500 Hz)

    ACP-2020MB-50RE 1 Grms
    ACP-2020MB-35B 1 Grms
  • Non-Operating Vibration (5 ~ 500 Hz)

    ACP-2020MB-50RE 2 Grms
    ACP-2020MB-35B 2 Grms

Physical Characteristics

  • Weight

    ACP-2020MB-50RE 8.6 kg ( 18.96 lbs )
    ACP-2020MB-35B 8.6 kg ( 18.96 lbs )
  • Dimensions (W x H x D)

    ACP-2020MB-50RE 482 x 88 x 398 mm ( 18.96" x 3.46" x 15.67" )
    ACP-2020MB-35B 482 x 88 x 398 mm ( 18.96" x 3.46" x 15.67" )

Disk Drive Bay

  • Slim ODD

    ACP-2020MB-50RE 1
    ACP-2020MB-35B 1
  • 2.5" Internal

    ACP-2020MB-50RE 2
    ACP-2020MB-35B 2
  • 2.5” External

    ACP-2020MB-50RE 2
    ACP-2020MB-35B 2
  • Hot-swap Drive Bay

    ACP-2020MB-50RE 2 ( 2.5" SAS/SATA - Optional )
    ACP-2020MB-35B 2 ( 2.5" SAS/SATA - Optional )

Miscellaneous

  • LED Indicators

    ACP-2020MB-50RE Power, HDD, temperature, fan, LAN1, and LAN2
    ACP-2020MB-35B Power, HDD, temperature, fan, LAN1, and LAN2
