PCI卡

凭借在插卡式 I/O 适配卡领域的丰富设计与制造经验,研华提供全系列的工业级数据采集 (DAQ) 产品。 透过众多的终端模块与软件支持,研华的PCI 适配卡给您高速、高质量且节省成本的产品选择,适用于要求多功能、模拟 I/O、隔离式与非隔离式 I/O 及计数器的工业环境。 研华的插卡式 I/O 解决方案满足您基本用途的机器自动化应用需求,并提供模拟 I/O 及隔离式与非隔离式 I/O。

快速筛选

  • Analog Input

    • Channels

    • Resolution(Bits)

    • Sampling Rates(S/s)

  • Analog Output

    • Channels

    • Resolution

    • Update Rate(S/s)

  • Counter/Encoder Input

    • Channels

  • Digital Input

    • Channels

  • Digital Output

    • Channels

  • Relay Output

    • Channels

Part Number Description Analog Input Analog Output Counter/Encoder Input Digital Input Digital Output Relay Output
    Channels Resolution(Bits) Sampling Rates(S/s) Channels Resolution Update Rate(S/s) Channels Channels Channels Channels
Part Number Description Analog Input Analog Output Counter/Encoder Input Digital Input Digital Output Relay Output
    Channels Resolution(Bits) Sampling Rates(S/s) Channels Resolution Update Rate(S/s) Channels Channels Channels Channels
PCI-1706U-AE 250 kS/s, 16-bit, 8-ch Simultaneous Sampling, Multifunction PCI Card 8 16-bit 250 KS/s (per channel) 2 12-bit Static update 2 16 (TTL) 16 (TTL) N/A
PCI-1710HGU-DE 100 kS/s, 12-bit, 16-ch High Gain Universal Multifunction PCI Card 16 12-bit 100 KS/s (sum) 2 12-bit Static update 2 16 (TTL) 16 (TTL) N/A
PCI-1710U-DE 100 kS/s, 12-bit, 16-ch Universal Multifunction PCI Card 16 12-bit 100 KS/s (sum) 2 12-bit Static update 2 16 (TTL) 16 (TTL) N/A
PCI-1710UL-DE 100 kS/s, 12-bit, 16-ch Universal Multifunction PCI Card w/o AO 16 12-bit 100 KS/s (sum) 2 12-bit Static update 2 16 (TTL) 16 (TTL) N/A
PCI-1711U-CE 100 kS/s, 12-bit, 16-ch Universal Multifunction PCI Card 16 12-bit 100 KS/s (sum) 2 12-bit Static update 2 16 (TTL) 16 (TTL) N/A
PCI-1711UL-CE 100k, 12bit Low-cost Multi Uni PCI Card 16 12-bit 100 KS/s (sum) N/A N/A N/A 2 16 (TTL) 16 (TTL) N/A
PCI-1712-AE 1 MS/s, 12-bit, 16-ch Multifunction PCI Card 16 12-bit 1 MS/s (sum) 2 12-bit 1 MS/s 3 16 (TTL) 16 (TTL) N/A
PCI-1713U-BE 100 kS/s, 12-bit, 32-ch Isolated Analog Input Universal PCI Card 32 12-bit 100 KS/s (sum) N/A N/A N/A N/A N/A N/A N/A
PCI-1714U-BE 30 MS/s, 12-bit, 4-ch Simultaneous Analog Input PCI Card 4 12-bit 30 MS/s (per channel) N/A N/A N/A N/A N/A N/A N/A
PCI-1714UL-BE 10 MS/s, 12-bit, 4-ch Simultaneous Analog Input PCI Card 4 12-bit 10 MS/s (per channel) N/A N/A N/A N/A N/A N/A N/A
PCI-1715U-AE 500 kS/s, 12-bit, 32-ch Isolated Analog Input Universal PCI Card 32 12-bit 500 KS/s (sum) N/A N/A N/A N/A N/A N/A N/A
PCI-1716-BE 500 kS/s, 16-bit, 16-ch Multifunction PCI Card 16 16-bit 500 KS/s (sum) 2 16-bit 1 MS/s 1 16 (TTL) 16 (TTL) N/A
PCI-1716L-BE 500 kS/s, 16-bit, 16-ch Multifunction PCI Card w/o AO 16 16-bit 500 KS/s (sum) N/A N/A N/A 1 16 (TTL) 16 (TTL) N/A
PCI-1718HDU-AE 100 kS/s, 12-bit, 16-ch Universal Multifunction PCI Card 16 12-bit 100 KS/s (sum) 1 12-bit 100 KS/s 1 16 (TTL) 16 (TTL) N/A
PCI-1720U-BE 12-bit, 4-ch Isolated Analog Output Universal PCI Card N/A N/A N/A 4 12-bit Static update N/A N/A N/A N/A
PCI-1721-AE 12-bit, 4-ch Analog Output PCI Card with 16-ch Digital I/O N/A N/A N/A 4 12-bit 10 MS/s 1 16 (TTL) 16 (TTL) N/A
PCI-1723-BE 16bit, 8ch Synchronized Analog Output Card with 16-ch Digital I/O N/A N/A N/A 8 16-bit Static update N/A 16 (TTL) 16 (TTL) N/A
PCI-1724U-BE 14-bit, 32-ch Isolated Analog Output PCI N/A N/A N/A 32 14-bit Static update N/A N/A N/A N/A
PCI-1727U-AE 14-bit, 12-ch Analog Output Universal PCI Card with 32-ch Digital I/O N/A N/A N/A 12 14-bit Static update N/A 16 (TTL) 16 (TTL) N/A
PCI-1730U-BE 32-ch Isolated Digital I/O Universal PCI Card N/A N/A N/A N/A N/A N/A N/A 16 (Isolated), 16 (TTL) 16 (Isolated), 16 (TTL) N/A
PCI-1733-BE 32-ch Isolated Digital Input PCI Card N/A N/A N/A N/A N/A N/A N/A 32 (Isolated) N/A N/A
PCI-1734-CE 32-ch Isolated Digital Output PCI Card N/A N/A N/A N/A N/A N/A N/A N/A 32 (Isolated) N/A
PCI-1735U-AE 64-ch Digital I/O and Counter Universal PCI Card N/A N/A N/A N/A N/A N/A N/A 32 (TTL) 32 (TTL) N/A
PCI-1737U-BE 24-ch Digital I/O Universal PCI Card N/A N/A N/A N/A N/A N/A N/A 24 (TTL) 24 (TTL) N/A
PCI-1739U-AE 48-ch Digital I/O Universal PCI Card N/A N/A N/A N/A N/A N/A N/A 48 (TTL) 48 (TTL) N/A
PCI-1742U-AE 1 MS/s, 16-bit, 16-ch Universal Multifunction PCI Card 16 16-bit 1 MS/s (sum) 2 16-bit Static update 1 16 (TTL) 16 (TTL) N/A
PCI-1747U-AE 250 kS/s, 16-bit, 64-ch Analog Input Universal PCI Card 64 16-bit 250 KS/s N/A N/A N/A N/A N/A N/A N/A
PCI-1750-BE 32-ch Isolated Digital I/O and 1-ch Counter PCI Card N/A N/A N/A N/A N/A N/A 1 16 (Isolated) 16 (Isolated) N/A
PCI-1750SO-AE 32-ch Isolated Digital I/O and 1-ch Counter PCI Card N/A N/A N/A N/A N/A N/A 1 16 (Isolated) 16 (Isolated) N/A
PCI-1751-BE 48-ch Digital I/O and 3-ch Counter PCI Card N/A N/A N/A N/A N/A N/A 3 48 (TTL) 48 (TTL) N/A
PCI-1752U-BE 64-ch Isolated Digital Output Universal PCI Card N/A N/A N/A N/A N/A N/A N/A N/A 64 (Isolated) N/A
PCI-1752USO-BE 64-ch Isolated Source Type (PNP) Digital Output Universal PCI Card N/A N/A N/A N/A N/A N/A N/A N/A 64 (Isolated) N/A
PCI-1753-BE 96-ch Digital I/O PCI Card N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
PCI-1753-CE 96ch TTL Digital I/O Card N/A N/A N/A N/A N/A N/A N/A 96 (TTL) 96 (TTL) N/A
PCI-1754-BE 64-ch Isolated Digital Input PCI Card N/A N/A N/A N/A N/A N/A N/A 64 (Isolated) N/A N/A
PCI-1756-BE 64-ch Isolated Digital I/O PCI Card N/A N/A N/A N/A N/A N/A N/A 32 (Isolated) 32 (Isolated) N/A
PCI-1757UP-AE 24-ch Digital I/O Low Profile Universal PCI Card N/A N/A N/A N/A N/A N/A N/A 24 (TTL) 24 (TTL) N/A
PCI-1758UDI-BE 128-ch Isolated Digital Input PCI Card N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
PCI-1758UDIO-BE 128-ch Isolated Digital I/O PCI Card N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
PCI-1758UDO-BE 128-ch Isolated Digital Output PCI Card N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
PCI-1760U-BE 8-ch Relay and 8-ch Isolated DI PCI Card with 8-ch Counter/Timer N/A N/A N/A N/A N/A N/A N/A 8 (Isolated) N/A 2 Form C, 6 Form A
PCI-1761-BE 8-ch Relay and 8-ch Isolated Digital Input PCI Card N/A N/A N/A N/A N/A N/A N/A 8 (Isolated) N/A 4 Form C, 4 Form A
PCI-1762-BE 16-ch Relay and 16-ch Isolated Digital Input PCI Card N/A N/A N/A N/A N/A N/A N/A 16 (Isolated) N/A 16 Form A
PCI-1780U-AE 8-ch, 16-bit Counter/Timer Universal PCI Card N/A N/A N/A N/A N/A N/A 8 8 (TTL) 8 (TTL) N/A
PCI-1784U-AE 4-axis Quadrature Encoder/Counter and 8-ch Isolated Digital I/O PCI Card N/A N/A N/A N/A N/A N/A 4 4 (Isolated) 4 (Isolated) N/A
PCIE-1730-BE 32ch Iso. DIO and 32ch TTL DIO PCI Expre N/A N/A N/A N/A N/A N/A N/A 16 (Isolated), 16 (TTL) 16 (Isolated), 16 (TTL) N/A
PCIE-1730H-BE 32ch Iso. DIO and 32ch TTL DIO w/ Filter N/A N/A N/A N/A N/A N/A N/A 16 (Isolated), 16 (TTL) 16 (Isolated), 16 (TTL) N/A
PCIE-1750U-AE 32-ch Isolated Digital I/O with universal output PCIE Card N/A N/A N/A N/A N/A N/A N/A 16 (Isolated) 16 (Isolated) N/A
PCIE-1751-AE 48-ch Digital I/O and 3-ch Counter PCIE Card N/A N/A N/A N/A N/A N/A 3 48 (TTL) 48 (TTL) N/A
PCIE-1752-AE 64-ch Isolated Digital Output PCIE Card N/A N/A N/A N/A N/A N/A N/A N/A 64 (Isolated) N/A
PCIE-1753-AE 96-ch Digital I/O PCIE Card N/A N/A N/A N/A N/A N/A N/A 96 (TTL) 96 (TTL) N/A
PCIE-1754-AE 64-ch Isolated Digital Input PCIE Card N/A N/A N/A N/A N/A N/A N/A N/A 64 (Isolated) N/A
PCIE-1756-AE 64-ch Isolated Digital I/O PCIE Card N/A N/A N/A N/A N/A N/A N/A 32 (Isolated) 32 (Isolated) N/A
PCIE-1756H-AE 64-ch Isolated Digital I/O PCI Express C N/A N/A N/A N/A N/A N/A N/A 32 (Isolated) 32 (Isolated) N/A
PCIE-1758DI-AE 128-ch Isolated Digital Input PCIE Card N/A N/A N/A N/A N/A N/A N/A 128 (Isolated) N/A N/A
PCIE-1758DIO-AE 128-ch Isolated Digital I/O PCIE Card N/A N/A N/A N/A N/A N/A N/A 64 (Isolated) 64 (Isolated) N/A
PCIE-1758DO-AE 128-ch Isolated Digital Output PCIE Card N/A N/A N/A N/A N/A N/A N/A N/A 128 (Isolated) N/A
PCIE-1760-AE 8-ch Relay and 8-ch Isolated Digital Input PCIE Card N/A N/A N/A N/A N/A N/A 2 8 (Isolated) N/A 2 Form C, 6 Form A
PCIE-1761H-AE 8-ch Relay and 8-ch Isolated Digital Input PCIe Card N/A N/A N/A N/A N/A N/A N/A 8 (Isolated) N/A 4 Form A, 4 Form C
PCIE-1762H-AE 16-ch Relay and 16-ch Isolated Digital Input PCIe Card N/A N/A N/A N/A N/A N/A N/A 16 (Isolated) N/A 16 Form A
PCIE-1763AH-AE 16-ch SSR Output(AC) and 16-ch Isolated Digital Input PCIE Card N/A N/A N/A N/A N/A N/A N/A N/A N/A 16 Form A
PCIE-1763DH-AE 16-ch SSR Output(DC) and 16-ch Isolated Digital Input PCIE Card N/A N/A N/A N/A N/A N/A N/A N/A N/A 16
PCIE-1765-AE 12-ch Relay PCIE Card N/A N/A N/A N/A N/A N/A N/A N/A N/A 12
PCIE-1802-AE 216 kS/s, 24-bit, 8-ch Dynamic Signal Acquisition PCIE Card 8 24-bit 216 KS/s (per channel) N/A N/A N/A N/A 1 (TTL) 2 (TTL) N/A
PCIE-1802L-AE 216 kS/s, 24-bit, 4-ch Dynamic Signal Acquisition PCIE Card 4 24-bit 216 KS/s (per channel) N/A N/A N/A N/A 1 (TTL) 2 (TTL) N/A
PCIE-1803-AE 128 kS/s, 24-bit, 8-ch Dynamic Signal Acquisition PCIE Card 8 24-bit 128 KS/s (per channel) N/A N/A N/A N/A 1 (TTL) 2 (TTL) N/A
PCIE-1810-AE 500 kS/s, 12-bit, 16-ch Multifunction PCIE Card 16 12-bit 800 KS/s (sum) 2 12-bit 500 KS/s 2 24 (TTL) 24 (TTL) N/A
PCIE-1812-AE 250 kS/s, 16-bit, 8-ch, Simultaneous Sampling, Multifunction PCIE Card 8 16-bit 250 KS/s (per channel) 2 16-bit 3 MS/s 4 32 (TTL) 32 (TTL) N/A
PCIE-1813-AE 38.4 kS/s, 26-bit, 4-Ch, Simultaneous Sampling, Multifunction PCIE Card 4 26-bit 38.4 KS/s (per channel) 2 16-bit 3 MS/s 4 32 (TTL) 32 (TTL) N/A
PCIE-1816-AE 1 MS/s, 16-bit, 16-ch Multifunction PCIE Card 16 16-bit 1 MS/s (sum) 2 16-bit 3 MS/s 2 24 (TTL) 24 (TTL) N/A

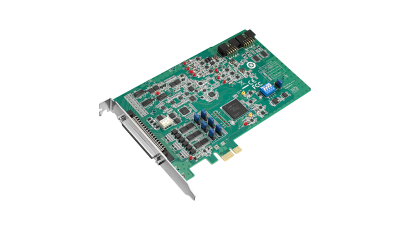

PCIE-1816H-AE 5 MS/s, 16-bit, 16-ch Multifunction PCIE Card 16 16-bit 5 M (sum) 2 16-bit 3 MS/s 2 24 (TTL) 24 (TTL) N/A
PCIE-1824-AE 16-bit ,32/16-ch Analog Output PCIE Card N/A N/A N/A 32 16-bit Static update N/A N/A N/A N/A
PCIE-1840-AE 125 MS/S, 16-bit, 4-ch Simultaneous Digitizer 4 16-bit 125 MS/s (per channel) N/A N/A N/A N/A N/A N/A N/A
PCIE-1840L-AE 80 MS/S, 16-bit, 4-ch Simultaneous Digitizer 4 16-bit 80 MS/s (per channel) N/A N/A N/A N/A N/A N/A N/A
PCIE-1884-AE 32-bit, 4-ch Encoder/Counter with Position Compare FIFO PCIE Card N/A N/A N/A N/A N/A N/A 4 4 (Isolated) 4 (Isolated) N/A
PCL-833-BE 3-axis Quadrature Encoder and 2-ch Counter ISA Card N/A N/A N/A N/A N/A N/A 3 5 (Isolated) N/A N/A

产品型录

  • PCI总线多功能卡

    研华针对PCI总线提供一系列多功能卡。先进的电路设计提供高品质及多项功能。详情请下载数据表及技术资料。

  • PCI总线模拟量输入卡

    研华提供 PCI 总线适用的独立式高速模拟输入适配卡。它具有 32 个模拟输入通道及高达 30 MS/s 的取样率,针对 A/D 取样提供连续、不间断、高速的串流数据,以便控管内存。

  • PCI总线模拟量输出卡

    研华隔离式高密度多通道模拟量输出卡适用于 PCI 总线,是需要多模拟输出通道之工业级应用的理想解决方案。 这些适配卡提供选购的电压、电流输出及机板 ID。

  • PCI总线非隔离数字量I/O卡

    研华的 PCI 总线非隔离式数字量 I/O 卡具有高可靠性工业特色。 这些非独立式 DI/O 适配卡适用于: 继电器与交换器监控及控制、平行数据传输、TTL、DTL 及 CMOS 逻辑讯号检测、LED 指示灯驱动。 这些功能可让用户以全速同步执行所有 I/O 功能,而不损失任何数据。

  • PCI总线隔离数字量I/O卡

    研华20多年来专注于I/O卡研发与生产,具备先进的技术和丰富的经验,产品包括PCI-总线,ISA-总线,PC/104,以及CPCI平台等。

  • PCI总线计数器卡

    研华设计出强大的计数器功能,以符合工业或实验室应用的需求。 研华提供PCI 总线适用的通用多信道计数器/定时器适配卡与定时器附加适配卡。此一弹性的中断来源适合用于马达控制与位置监控。
