基于RISC架构的站立式工业通讯网关(ECU-1000系列)

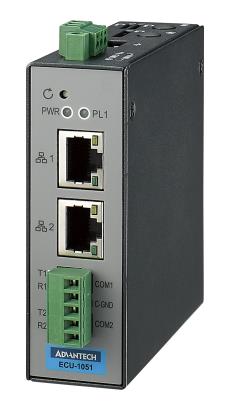

ECU-1051

工业物联网云智能通信网关

  • TI Cortex A8 600MHz CPU ，配备DDR3L 256MB 内存
  • ⽀持 Web 服务进⾏远程在线监控
  • 支持SD卡和OTA固件更新
  • 支持SD卡数据采集
  • 支持双SIM卡插槽，实现通信冗余
  • 支持MQTT云通讯
  • 工作温度:-40 ~ 70℃
  • 无RED认证

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 工业物联网云智能通信网关

规格

Environment
Operating Temperature
  • -40~70 °C (-40~158 °F)
  • -40~70 °C (-40~158 °F)
  • -40~70 °C (-40~158 °F)
Relative Humidity
  • 5~95% RH (non-condensing)
  • 5~95% RH (non-condensing)
  • 5~95% RH (non-condensing)
Storage Temperature
  • -40~85 °C (-40~185 °F)
  • -40~85 °C (-40~185 °F)
  • -40~85 °C (-40~185 °F)
Ethernet
Speed
  • 10/100 Mbps
  • 10/100 Mbps
  • 10/100 Mbps
Expansion Function
Interface
  • 1 x Full-size mini PCIe 2.0
  • 1 x Full-size mini PCIe 2.0
  • 1 x Full-size mini PCIe 2.0
SIM card slot
  • Nano SIM card
  • Nano SIM card
  • Nano SIM card
General
Grounding Protection
  • Chassis grounding
  • Chassis grounding
  • Chassis grounding
Programming Language
  • Linux C
  • Linux C
  • Linux C
Protocol
  • OPC-UA Client & Server, DNP3.0 Client & Server,
    IEC-60870-5-104 Master & Slave, IEC-60870-5-101
    Slave, Modbus RTU/TCP Master & Slave, BACNet/IP
    Server
  • OPC-UA Client & Server, DNP3.0 Client & Server,
    IEC-60870-5-104 Master & Slave, IEC-60870-5-101
    Slave, Modbus RTU/TCP Master & Slave, BACNet/IP
    Server
  • OPC-UA Client & Server, DNP3.0 Client & Server,
    IEC-60870-5-104 Master & Slave, IEC-60870-5-101
    Slave, Modbus RTU/TCP Master & Slave, BACNet/IP
    Server
Hardware
Certification
  • CE, FCC class A
  • CE, FCC class A
  • CE, FCC class A
CPU
  • TI Cortex A8, 600MHz
  • TI Cortex A8, 300MHz
  • TI Cortex A8, 600MHz
Expansion
  • 1 x Full-size mPCIe slot
  • 1 x Full-size mPCIe slot
  • 1 x Full-size mPCIe slot
LED Indicators
  • PWR, RUN / ERROR, TX1, RX1, TX2, RX2, Program
  • PWR, RUN / ERROR, TX1, RX1, TX2, RX2, Program
  • PWR, RUN / ERROR, TX1, RX1, TX2, RX2, Program
Memory
  • DDR3L 256MB
  • DDR3L 128MB
  • DDR3L 256MB
OS Support
  • Linux
  • Linux
  • Linux
Power Input
  • 10~30 VDC
  • 10~30 VDC
  • 10~30 VDC
Storage
  • 1 x 512MB NAND Flash
  • 1 x 512MB NAND Flash
  • 1 x 512MB NAND Flash
Watchdog Timer
  • 15~255 s
  • 15~255 s
  • 15~255 s
I/O Interface
Expansion
  • 1 x Full-size mPCIe Slot
  • 1 x Full-size mPCIe Slot
  • 1 x Full-size mPCIe Slot
LAN Ports
  • 2 x 10/100 Mbps
  • 2 x 10/100 Mbps
  • 2 x 10/100 Mbps
Power Connector
  • 1 x 3-Pin Terminal Block
  • 1 x 3-Pin Terminal Block
  • 1 x 3-Pin Terminal Block
Serial Ports
  • 2 x RS-232/485 (Terminal Block)
  • 2 x RS-232/485 (Terminal Block)
  • 2 x RS-232/485 (Terminal Block)
Mechanical
Dimension (W x H x D)
  • 92 x 30 x 93 mm
  • 92 x 30 x 93 mm
  • 92 x 30 x 93 mm
Enclosure
  • SECC
  • SECC
  • SECC
Form Factor
  • Passive Cooling and Front Accessible
  • Passive Cooling and Front Accessible
  • Passive Cooling and Front Accessible
Mounting
  • Wall, DIN-rail
  • Wall, DIN-rail
  • Wall, DIN-rail
Power Requirements
Input Voltage
  • 10~30 VDC
  • 10~30 VDC
  • 10~30 VDC
Serial Communication
Baud Rate (bps)
  • 50 bps~115.2 kbps
  • 50 bps~115.2 kbps
  • 50 bps~115.2 kbps
Data Signals
  • RS-232: TxD, RxD, GND
    RS-485: Data+, Data-
  • RS-232: TxD, RxD, GND
    RS-485: Data+, Data-
  • RS-232: TxD, RxD, GND
    RS-485: Data+, Data-
Wireless Communication
Standard (Technology)
  • WIFI, LTE
  • WIFI, LTE
  • WIFI, LTE
