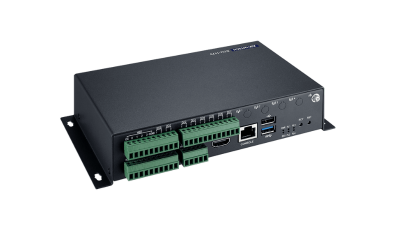

基于RISC架构的站立式工业通讯网关(ECU-1000系列)

ECU-1170

用于电池储能系统的高性能多功能网关

  • 四核Cortex-A55处理器，1.8GHz
  • 连接：4 GbE、8个RS-232/485、2个CAN、1个mPCl和1个M.2
  • I/O：20 DI，6 DO，8继电器，2 AI
  • 电池供电的RTC、看门狗和可选的TPM支持
  • 工作温度范围宽：-40~70°C
  • 可选5秒电源备份，带超级电容器
  • 支持IEC 61850、IEC 104、DNP3、Modbus、MQTT和OPC UA
  • 预装Yocto Linux和EdgeLink或Ubuntu Linux

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 用于电池储能系统的高性能多功能网关

规格

Power Supply
Input Voltage
  • 10~30 VDC
  • 10~30 VDC
Analog Input
Channels
  • 2
  • 2
lnput Type
  • V, mA
  • V, mA
Input Range
  • 0~10 V, 0~20 mA
  • 0~10 V, 0~20 mA
General
Humidity (Storage)
  • 5~95% RH (non-condensing)
  • 5~95% RH (non-condensing)
Hardware
LAN
  • 4 x 10/100/1000 Mbps
  • 4 x 10/100/1000 Mbps
Watchdog Timer
  • 1~255 s
  • 1~255 s
Certification
  • CE, FCC, UL
  • CE, FCC, UL
OS Support
  • Linux Yocto
  • Linux
Video Port
  • HDMI
  • HDMI
I/O
  • 2 x CAN Bus
  • 2 x CAN Bus
CPU
  • Rockchip ARM® RK3568J Quad-core Cortex-A55
  • Rockchip ARM® RK3568J Quad-core Cortex-A55
Memory
  • 1 x LPDDR4 with 4 GB
  • 1 x LPDDR4 with 4 GB
Expansion
  • 1 x Full-size mPCIe slot, 1 x M.2 B key 2280
  • 1 x Full-size mPCIe slot, 1 x M.2 B key 2280
LED Indicators
  • PWR, Programmable LED
  • PWR, Programmable LED
Storage
  • 1 x eMMC (32 GB), 1 x SD Slot
  • 1 x eMMC (32 GB), 1 x SD Slot
I/O Interface
USB Ports
  • 1 x USB 2.0, 2 x USB 3.0
  • 1 x USB 2.0, 2 x USB 3.0
Serial Ports
  • 8 x RS-232/485
  • 8 x RS-232/485
Environment
Ingress Protection
  • IP30
  • IP30
Operating Temperature
  • -40~70 °C (-40~158 °F)
  • -40~70 °C (-40~158 °F)
Storage Temperature
  • -40~85 °C (-40~185 °F)
  • -40~85 °C (-40~185 °F)
Vibration Protection
  • 1 Grms
  • 1 Grms
Shock Protection
  • 15 G, half sine
  • 15 G, half sine
Relay Output
Channels
  • 8 Form A
  • 8 Form A
Mechanical
Mounting
  • Wall, DIN-rail
  • Wall, DIN-rail
Form Factor
  • Passive Cooling and Front Accessible
  • Passive Cooling and Front Accessible
Enclosure
  • SGCC
  • SGCC
Dimension (W x H x D)
  • 183 x 108 x 43 mm
  • 183 x 108 x 43 mm
Expansion Function
SIM card slot
  • Nano SIM card
  • Nano SIM card
Antenna
  • 4 x SMA hole
  • 4 x SMA hole
Wireless Communication
Standard (Technology)
  • WIFI, LTE
  • WIFI, LTE
Digital Input and Digital Output
No. of Channels
  • 20-ch DI and 6-ch DO
  • 20-ch DI and 6-ch DO
