3.5" MI/O 单板电脑

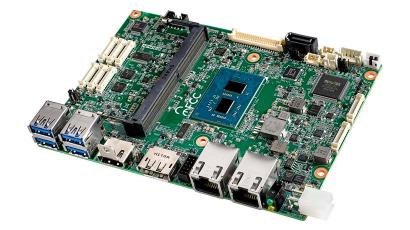

MIO-5152

Intel 第8代Atom系列 3.5" 单板电脑

  • Intel Atom 第八代 四核/双核处理器, TDP 6W-12W
  • 单通道DDR4-3200 高达32G
  • 独立三显：LVDS, DP1.4, HDMI2.0 高达4K@60Hz
  • 双GbE, 6 USB, 6 UART, TPM2.0
  • CE/FCC Class B， ESD 8KV/15KV标准
  • 支持 Windows 10 LTSC和Ubuntu 20.04 LTS，嵌入式软件api, WISE-DeviceOn

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • Intel 第8代Atom系列 3.5" 单板电脑

规格

Processor
CPU
  • Intel Celeron J6412
  • Intel Celeron N6210
  • Intel Atom x6425E
Max Turbo Frequency
  • 2.6 GHz
  • 2.6 GHz
  • 3.0GHz
Base Frequency
  • 2.0 GHz
  • 1.2 GHz
  • 2.0 GHz
Core Number
  • 4
  • 2
  • 4
CPU TDP
  • 10 W
  • 6.5 W
  • 12W
Chipset
  • Integrated in SOC
  • Integrated in SOC
  • Integrated in SOC
BIOS
  • AMI EFI 256 Mbit
  • AMI EFI 256 Mbit
  • AMI EFI 256 Mbit
Memory
Technology
  • DDR4 3200 Mbit SDRAM
  • DDR4 3200 Mbit SDRAM
  • DDR4 3200 Mbit SDRAM
Max. Capacity
  • 32 GB
  • 32 GB
  • 32 GB
Channel/ Socket
  • Single Channel / 1 Socket
  • Single Channel / 1 Socket
  • Single Channel / 1 Socket
ECC Support
  • N/A
  • N/A
  • N/A
Graphics
Controller
  • Intel Gen11 Graphics Engines
  • Intel Gen11 Graphics Engines
  • Intel Gen11 Graphics Engines
Max. Frequency
  • 800MHz
  • 750MHz
  • 750MHz
Base Frequency
  • 400MHz
  • 250MHz
  • 500MHz
Display
LCD
  • LVDS: Dual channel 18/24-bit, up to 1920 x 1080
  • LVDS: Dual channel 18/24-bit, up to 1920 x 1080
  • LVDS: Dual channel 18/24-bit, up to 1920 x 1080
HDMI
  • 1 x HDMI2.0, up to 4096 x 2160
  • 1 x HDMI2.0, up to 4096 x 2160
  • 1 x HDMI2.0, up to 4096 x 2160
Rear I/O
HDMI / DisplayPort*
  • 1/1
  • 1/1
  • 1/1
Internal I/O
SATA
  • 6 (SATA III)
  • 6 (SATA III)
  • 6 (SATA III)
USB
  • 2 x USB 2.0
  • 2 x USB 2.0
  • 2 x USB 2.0
GPIO
  • 8-bit general purpose input/output
  • 8-bit general purpose input/output
  • 8-bit general purpose input/output
Audio
Chipset
  • Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in
  • Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in
  • Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in
Power
Power Supply Voltage
  • Vin: 12V
  • Vin: 12V
  • Vin: 12V
Connector
  • ATX 2x2p
  • ATX 2x2p
  • ATX 2x2p
Environment
Temperature (Operating)
  • 0 ~ 60° C (32 ~ 140° F)
  • 0 ~ 60° C (32 ~ 140° F)
  • 0 ~ 60° C (32 ~ 140° F)
Humidity
  • 40° C @ 95% RH Non-Condensing
  • 40° C @ 95% RH Non-Condensing
  • 40° C @ 95% RH Non-Condensing
Vibration Resistance
  • 3.5 Grms
  • 3.5 Grms
  • 3.5 Grm
Certification
EMC
  • CE, FCC
  • CE, FCC
  • CE/FCC
Mechanical
Dimensions
  • 146 x 102 mm (5.75" x 4.02")
  • 146 x 102 mm (5.75" x 4.02")
  • 146 x 102 mm (5.75" x 4.02")
Expansion
M.2
  • 1 x E key (Type:2230) + 1 x M key (Type:2242)
  • 1 x E key (Type:2230) + 1 x M key (Type:2242)
  • 1 x E key (Type:2230) + 1 x M key (Type:2242)
Operating System
Ubuntu
  • V
  • V
  • V
