3.5" MI/O 单板电脑

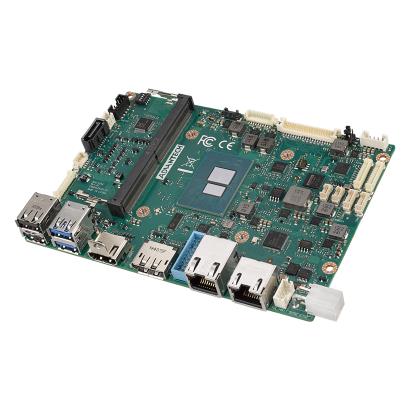

MIO-5354

3.5" SBC，配备Intel Atom x7835RE/x7433RE/x7211RE（扩展温度SKU）

  • Intel Atom x7835RE/x7433RE/x7211RE（扩展温度SKU）
  • 单通道 DDR5-4800 最高支持 16GB，支持 IBECC
  • 3独立显示：LVDS + HDMI + DP
  • 1xGbE带有OOB(带外控制)，1x 2.5GbE带有TSN和PoE(通过MIOe-PSE PWR模块)，6x USB，4x COM，SMBus/I2C
  • 3x 独立 M.2 插槽：E-Key 2230、B-Key 2280 和 3052
  • 支持 EdgeBMC & 软件 APIs，DeviceOn

认证：

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 3.5" SBC，配备Intel Atom x7835RE/x7433RE/x7211RE（扩展温度SKU）

规格

Processor
CPU
  • x7835RE
  • x7433RE
  • x7211RE
  • i3-N305
  • N97
Core Number
  • 8
  • 4
  • 2
  • 8
  • 4
Max Turbo Frequency
  • 3.6GHz
  • 3.4GHz
  • 3.2 GHz
  • 3.8 GHz
  • 3.6GHz
CPU TDP
  • 12W
  • 9W
  • 6W
  • 15W
  • 12W
Chipset
  • Integrated in SOC
  • Integrated in SOC
  • Integrated in SOC
  • Integrated in SOC
  • Integrated in SOC
BIOS
  • AMI UEFI 256 Mbit
  • AMI UEFI 256 Mbit
  • AMI UEFI 256 Mbit
  • AMI UEFI 256 Mbit
  • AMI UEFI 256 Mbit
Memory
Technology
  • DDR5 4800 MHz
  • DDR5 4800 MHz
  • DDR5 4800 MHz
  • DDR5 4800 MHz
  • DDR5 4800 MHz
Max. Capacity
  • 16GB (up to 16GB per SO-DIMM)
  • 16GB (up to 16GB per SO-DIMM)
  • 16GB (up to 16GB per SO-DIMM)
  • 16GB (up to 16GB per SO-DIMM)
  • 16GB (up to 16GB per SO-DIMM)
Channel/ Socket
  • Single Channel / 1 Socket
  • Single Channel / 1 Socket
  • Single Channel / 1 Socket
  • Single Channel / 1 Socket
  • Single Channel / 1 Socket
ECC Support
  • Yes(by processor)
  • Yes(by processor)
  • Yes(by processor)
  • Yes(by processor)
  • Yes(by processor)
Graphics
Max. Frequency
  • 1.20 GHz
  • 1 GHz
  • 1 GHz
  • 1.25 GHz
  • 1.20 GHz
Display
LCD
  • LVDS: Dual channel 18/24-bit, up to 1920 x 1080
  • LVDS: Dual channel 18/24-bit, up to 1920 x 1080
  • LVDS: Dual channel 18/24-bit, up to 1920 x 1080
  • LVDS: Dual channel 18/24-bit, up to 1920 x 1080
  • LVDS: Dual channel 18/24-bit, up to 1920 x 1080
HDMI
  • 1 x HDMI2.0, up to 4096 x 2160
  • 1 x HDMI2.0, up to 4096 x 2160
  • 1 x HDMI2.0, up to 4096 x 2160
  • 1 x HDMI2.0, up to 4096 x 2160
  • 1 x HDMI2.0, up to 4096 x 2160
Display Port
  • 1 x DP1.4a, up to 4096 x 2304
  • 1 x DP1.4a, up to 4096 x 2304
  • 1 x DP1.4a, up to 4096 x 2304
  • 1 x DP1.4a, up to 4096 x 2304
  • 1 x DP1.4a, up to 4096 x 2304
Triple Display
  • LVDS, HDMI, DP
  • LVDS, HDMI, DP
  • LVDS, HDMI, DP
  • LVDS, HDMI, DP
  • LVDS, HDMI, DP
Ethernet
Controller
  • Intel® I226
  • Intel® I226
  • Intel® I226
  • Intel® I226
  • Intel® I226
Speed
  • Up to 2.5GbE
  • Up to 2.5GbE
  • Up to 2.5GbE
  • Up to 2.5GbE
  • Up to 2.5GbE
Rear I/O
Ethernet
  • 2
  • 2
  • 2
  • 2
  • 2
HDMI
  • 1
  • 1
  • 1
  • 1
  • 1
DP
  • 1
  • 1
  • 1
  • 1
  • 1
USB 3.2
  • 2
  • 2
  • 2
  • 2
  • 2
USB 2.0
  • 2
  • 2
  • 2
  • 2
  • 2
Internal I/O
SATA
  • 1 x SATA GenIII 6.0 Gbps
  • 1 x SATA GenIII 6.0 Gbps
  • 1 x SATA GenIII 6.0 Gbps
  • 1 x SATA GenIII 6.0 Gbps
  • 1 x SATA GenIII 6.0 Gbps
USB
  • 2 x USB3.0
  • 2 x USB3.0
  • 2 x USB3.0
  • 2 x USB3.0
  • 2 x USB3.0
I2C
  • 1
  • 1
  • 1
  • 1
  • 1
Serial
  • 2 x RS-232, 2 x RS-232/422/485 with auto flow control (ESD protection: air gap ±15kV, contact ±8kV)
  • 2 x RS-232, 2 x RS-232/422/485 with auto flow control (ESD protection: air gap ±15kV, contact ±8kV)
  • 2 x RS-232, 2 x RS-232/422/485 with auto flow control (ESD protection: air gap ±15kV, contact ±8kV)
  • 2 x RS-232, 2 x RS-232/422/485 with auto flow control (ESD protection: air gap ±15kV, contact ±8kV)
  • 2 x RS-232, 2 x RS-232/422/485 with auto flow control (ESD protection: air gap ±15kV, contact ±8kV)
SMBus
  • 1 (Shared with I2C pin)
  • 1 (Shared with I2C pin)
  • 1 (Shared with I2C pin)
  • 1 (Shared with I2C pin)
  • 1 (Shared with I2C pin)
GPIO
  • 8-bit general purpose input/output
  • 8-bit general purpose input/output
  • 8-bit general purpose input/output
  • 8-bit general purpose input/output
  • 8-bit general purpose input/output
Audio
  • Realtek ALC888s, Line-in/Line-out/MIC
  • Realtek ALC888s, Line-in/Line-out/MIC
  • Realtek ALC888s, Line-in/Line-out/MIC
  • Realtek ALC888s, Line-in/Line-out/MIC
  • Realtek ALC888s, Line-in/Line-out/MIC
Inverter
  • 1
  • 1
  • 1
  • 1
  • 1
FAN
  • 1 x 4-Wire Smart Fan, 12V@2A
  • 1 x 4-Wire Smart Fan, 12V@2A
  • 1 x 4-Wire Smart Fan, 12V@2A
  • 1 x 4-Wire Smart Fan, 12V@2A
  • 1 x 4-Wire Smart Fan, 12V@2A
Front Panel Control
  • Power LED, HD LED, Reset, Power Switch, Case Open, Buzzer
  • Power LED, HD LED, Reset, Power Switch, Case Open, Buzzer
  • Power LED, HD LED, Reset, Power Switch, Case Open, Buzzer
  • Power LED, HD LED, Reset, Power Switch, Case Open, Buzzer
  • Power LED, HD LED, Reset, Power Switch, Case Open, Buzzer
Security
TPM
  • Discrete TPM 2.0
  • Discrete TPM 2.0
  • Discrete TPM 2.0
  • Discrete TPM 2.0
  • Discrete TPM 2.0
Watchdog Timer
WatchDog Timer
  • 65536 Level, 0 ~ 65535 sec
  • 65536 Level, 0 ~ 65535 sec
  • 65536 Level, 0 ~ 65535 sec
  • 65536 Level, 0 ~ 65535 sec
  • 65536 Level, 0 ~ 65535 sec
Expansion
M.2 B-Key
  • 1 x B-Key 2280, 1 x B-Key 3052 with Nano-SIM
  • 1 x B-Key 2280, 1 x B-Key 3052 with Nano-SIM
  • 1 x B-Key 2280, 1 x B-Key 3052 with Nano-SIM
  • 1 x B-Key 2280, 1 x B-Key 3052 with Nano-SIM
  • 1 x B-Key 2280, 1 x B-Key 3052 with Nano-SIM
M.2 E-Key
  • 1 x E-Key 2230
  • 1 x E-Key 2230
  • 1 x E-Key 2230
  • 1 x E-Key 2230
  • 1 x E-Key 2230
Power
Power Supply Voltage
  • 12 VDC ~ 24 VDC
  • 12 VDC ~ 24 VDC
  • 12 VDC ~ 24 VDC
  • 12 VDC ~ 24 VDC
  • 12 VDC ~ 24 VDC
Connector
  • ATX 2pin
  • ATX 2pin
  • ATX 2pin
  • ATX 2pin
  • ATX 2pin
Power Management
  • AT, ATX
  • AT, ATX
  • AT, ATX
  • AT, ATX
  • AT, ATX
Environment
Operating Temperature
  • -40 ~ 85° C
  • -40 ~ 85° C
  • -40 ~ 85° C
  • 0 ~ 60° C (32 ~ 140° F)
  • 0 ~ 60° C (32 ~ 140° F)
Storage Temperature
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
  • - 40 ~ 85° C (-40 ~185° F)
Humidity
  • Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
  • Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
  • Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
  • Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
  • Operating: 40° C @ 95% relative humidity, non-condensing; Storage: 60° C @ 95%relative humidity, non-condensing
Certification
EMC
  • CE, FCC
  • CE, FCC
  • CE, FCC
  • CE, FCC
  • CE, FCC
Mechanical
Dimensions
  • 146 x 102 mm (5.75" x 4.02")
  • 146 x 102 mm (5.75" x 4.02")
  • 146 x 102 mm (5.75" x 4.02")
  • 146 x 102 mm (5.75" x 4.02")
  • 146 x 102 mm (5.75" x 4.02")
Weight
  • 145g
  • 145g
  • 145g
  • 145g
  • 145g
