3.5" MI/O 单板电脑

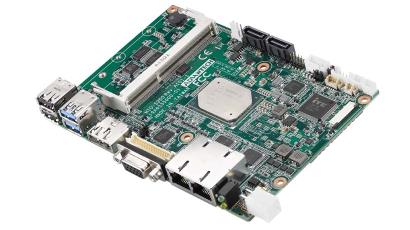

MIO-5350

英特尔第六代凌动 Atom®奔腾N4200/N3350，3.5寸单板电脑

  • 英特尔奔腾 N4200/赛扬 N3350/Atom® E3900系列处理器
  • 单通道DDR3L-1866 (204针SO-DIMM)，高达8GB
  • Intel® Gen9 GFx支持DX12、OpenCL 2.0、OpenGL 4.3；硬件解码：H.265/H.264，硬件编码：H.264
  • 支持同步三显：HDMI1.4b/DP1.2, LVDS (or eDP1.3), VGA
  • 双GbE, 2 x USB 3.0, 4 x USB 2.0, 2 x SATAIII, 2x RS-232/422/485, 2 x RS-232, 8-bit GPIO
  • 12V DC输入电源，支持热插拔保护设计，带DC插座或ATX 4P接口
  • 支持-40~85°C宽温（预计上市日期：2018年第二季度）
  • 支持研华WISE-PaaS/RMM、iManager软件API和实用工具
  • 支持Win10（64位）、Linux & VxWorks操作系统（按需定制）

技术资源链接：

产品型录 Download 3D Model 技术文件下载
  • 英特尔第六代凌动 Atom®奔腾N4200/N3350，3.5寸单板电脑

规格

Processor
CPU
  • Intel Pentium N4200
  • Intel Celeron N3350
Core Number
  • 4
  • 2
Base Frequency
  • 1.1 (Quad-Core)
  • 1.1 (Dual-Core)
Burst Frequency
  • 2.5 GHz
  • 2.4 GHz
L2 Cache
  • 2 MB
  • 2 MB
BIOS
  • AMI UEFI BIOS at 64 Mb
  • AMI UEFI BIOS at 64 Mb
Memory
Technology
  • DDR3L 1867MHz
  • DDR3L 1867MHz
Max. Capacity
  • 8 GB
  • 8 GB
Socket
  • 1 x 204-pin SODIMM
  • 1 x 204-pin SODIMM
Display
Controller
  • Intel Gen9 Graphic engine
  • Intel Gen9 Graphic engine
Graphic Features
  • DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), VP9, MVC
  • DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), VP9, MVC
VGA
  • Up to 1920 x 1200
  • Up to 1920 x 1200
LVDS
  • 48 bit LVDS up to 1.4b (3840 x 2160 @ 30Hz), Supports 3.3/5/12V for VDD power, 5/12V for inverter
  • 48 bit LVDS up to 1.4b (3840 x 2160 @ 30Hz), Supports 3.3/5/12V for VDD power, 5/12V for inverter
eDP*
  • v1.4 4096 x 2160 @ 60Hz
  • v1.4 4096 x 2160 @ 60Hz
HDMI / DisplayPort*
  • HDMI 3840 x 2160 @ 30Hz/ DP1.2a (4096 x 2160 @ 60Hz)
  • HDMI 3840 x 2160 @ 30Hz/ DP1.2a (4096 x 2160 @ 60Hz)
Multi-Display
  • VGA, HDMI/DP*, LVDS/eDP*
  • VGA, HDMI/DP*, LVDS/eDP*
Ethernet
Speed
  • 10/ 100/ 1000 Mbps
  • 10/ 100/ 1000 Mbps
Controller
  • Intel i210
  • Intel i210
Connector
  • 2 x RJ-45
  • 2 x RJ-45
Audio
CODEC
  • Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in
  • Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in
Amplifier
  • Optional via MIOe
  • Optional via MIOe
Watchdog Timer
  • Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds
  • Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds
Storage
SATA
  • 2 (2nd SATA is by request), up to 3Gb/s (300 MB/s)
  • 2 (2nd SATA is by request), up to 3Gb/s (300 MB/s)
mSATA
  • 1 x Full-size
  • 1 x Full-size
Rear I/O
Ethernet
  • 2 (10/100/1000Mbps)
  • 2 (10/100/1000Mbps)
VGA
  • 1
  • 1
HDMI / DisplayPort*
  • 1
  • 1
USB 2.0
  • 2
  • 2
USB 3.0
  • 2
  • 2
LED
  • Power, HDD
  • Power, HDD
DC Jack*
  • 1
  • 1
Internal I/O
Serial
  • 2 x RS-232 from COM1/2, 2 x RS-232/422/485 from COM3/4 with auto flow control (ESD protection: Air gap ±15kV, Contact ±8kV)
  • 2 x RS-232 from COM1/2, 2 x RS-232/422/485 from COM3/4 with auto flow control (ESD protection: Air gap ±15kV, Contact ±8kV)
USB2.0
  • 2
  • 2
I2C
  • 1 (Shared with SMBus pin)
  • 1 (Shared with SMBus pin)
SMBus
  • 1
  • 1
GPIO
  • 8-bit (5V tolerance)
  • 8-bit (5V tolerance)
Security
TPM
  • TPM2.0 (Support by request)
  • TPM2.0 (Support by request)
Expansion
Mini PCIe
  • M.2 E Key
  • M.2 E Key
MIOe
  • SMBus, 3 x USB2.0, LPC, 1 x PCIe x1, line out, DisplayPort*, +5 Vsb/+12 Vsb power, Power On, Rest
  • SMBus, 3 x USB2.0, LPC, 1 x PCIe x1, line out, DisplayPort*, +5 Vsb/+12 Vsb power, Power On, Rest
Power
Power Type
  • Single 12V DC power input
  • Single 12V DC power input
Power Supply Voltage
  • 12V ± 10%
  • 12V ± 10%
Power Consumption (Typical)
  • 0.4A @ 12V (4.80W)
  • 0.4A @ 12V (4.80W)
Power Consumption (Max)
  • 1.26A @ 12V (15.12W)
  • 1.29 @ 12V (15.48W)
Power Management
  • ACPI
  • ACPI
Battery
  • Lithium 3 V / 210 mAH
  • Lithium 3 V / 210 mAH
Environment
Operational Temperature
  • 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
  • 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Non-Operational Temperature
  • -40° C ~ 85° C and 60° C @ 95% RH non-condensing
  • -40° C ~ 85° C and 60° C @ 95% RH non-condensing
Physical
Dimension (mm)
  • 146 x 102 mm (5.7" x 4"), same as 3.5"
  • 146 x 102 mm (5.7" x 4"), same as 3.5"
Weight
  • 0.5kg (1.1lb), weight of total package
  • 0.5kg (1.1lb), weight of total package
Total Height
  • Top Side: 19 mm; Bottom Side: 6.8 mm; PCB: 1.6 mm
  • Top Side: 19 mm; Bottom Side: 6.8 mm; PCB: 1.6 mm
