医用平板电脑

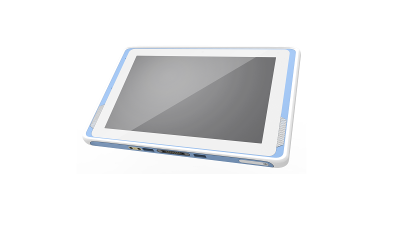

AIM-78H

10.1" 医疗平板电脑，搭载高通® 骁龙™ 660 处理器, 安卓10

  • 高通SDA660，安卓 10
  • 10.1" 全高清电容屏， 屏幕搭配耐磨损康宁® 大猩猩® 玻璃
  • 支持戴手套和手写笔操作，以提高可用性
  • 整合条码扫描器，支持数据收集
  • 快速漫游，支持双频 WLAN , 蓝牙5.0, NFC， 无缝通讯
  • 可选支持 1D/2D 条码扫描器, LAN+COM 模块, UHF RFID 模块

认证：

技术资源链接：

产品型录 技术文件下载
  • 10.1" 医疗平板电脑，搭载高通® 骁龙™ 660 处理器, 安卓10

规格

Computing System
Operating System
  • Android 13 with non-GMS certification
  • Android 13 with non-GMS certification
Barcode
Built In Barcode
  • X
  • V
System
Processor
  • Qualcomm SDA660 /SDM660 (up to 2.2GHz)
  • Qualcomm SDA660 /SDM660 (up to 2.2GHz)
Memory
  • 4GB LPDDR4 (supports up to 8GB)
  • 4GB LPDDR4 (supports up to 8GB)
Storage
EMMC
  • 64GB
  • 64GB
SD card
  • Micro SD (Supports up to 2 TB)
  • Micro SD (Supports up to 2 TB)
Display
Display Size
  • 10.1” FHD LCD
  • 10.1” FHD LCD
Resolution
  • WUXGA 1920 x 1200
  • WUXGA 1920 x 1200
Brightness
  • 380 cd/m²
  • 380 cd/m²
Touch Screen
  • Corning® Gorilla® Glass 3 with 10-point P-CAP touch control
  • Corning® Gorilla® Glass 3 with 10-point P-CAP touch control
Wireless Communication
WLAN/Bluetooth
  • IEEE 802.11 a/b/g/n/ac/k/v/r, Bluetooth® v5.0 + BLE
  • IEEE 802.11 a/b/g/n/ac/k/v/r, Bluetooth® v5.0 + BLE
NFC
  • 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica
  • 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica
I/O
STANDARD I/O PORT
  • 1 x USB3.1 Type C supporting data transmission only*, 1x USB 2.0 Type A,1x Combo audio jack,
    1 x 19 VDC-in jack, 1 x SIM card reader, 1 x micro SD card
  • 1 x USB3.1 Type C supporting data transmission only*, 1x USB 2.0 Type A,1x Combo audio jack,
    1 x 19 VDC-in jack, 1 x SIM card reader, 1 x micro SD card
EXTENDED I/O PORT
  • 1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power
  • 1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power
Buttons
  • 1 x Power button, 2 x volume keys (up/down), 1 x programmable function key
  • 1 x Power button, 2 x volume keys (up/down), 1 x programmable function key
Camera
Front
  • 8.0-megapixel fixed-focus camera
  • 8.0-megapixel fixed-focus camera
Rear
  • 13.0-megapixel aufo-focus camera with LED flash
  • 13.0-megapixel aufo-focus camera with LED flash
Sensors
Sensors
  • Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope
  • Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope
Environment
Operating Temperature
  • 0 ~ 40° C (32 ~ 104° F)
  • 0 ~ 40° C (32 ~ 104° F)
Storage Temperature
  • -20 ~ 60 °C/-4 ~ 140 °F
  • -20 ~ 60 °C/-4 ~ 140 °F
Certifications
  • IEC/UL/EN 60601-1, FCC/IC, CE, NCC/BSMI, TELEC/VCCI, RCM, CCC/SRRC
  • IEC/UL/EN 60601-1, FCC/IC, CE, NCC/BSMI, TELEC/VCCI, RCM, CCC/SRRC
Mechanical
Dimensions (W x H x D)
  • 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in)
  • 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in)
Weight
  • 980 g (2.2 lb)
  • 980 g (2.2 lb)
Multimedia
Speaker
  • 2 x Internal speakers (2 W)
  • 2 x Internal speakers (2 W)
Power System
Battery
  • Smart battery with capacity LED indicators; 10.8V, 2400 mAh, 26 WHr
  • Smart battery with capacity LED indicators; 10.8V, 2400 mAh, 26 WHr
Voltage Input
  • DC jack: 19V/3.43A, Docking pogo: 12V/2A
  • DC jack: 19V/3.43A, Docking pogo: 12V/2A
